DIAMOND A144S5

DIAMOND A144S5

144 MHz 5 Element Yagi Beam Antenna 37.5 Inch Boom 9 dBi Gain - SO239 UHF Female Connector

HRO Discount Price: $59.95*



*After Coupons & Promotions. Due to the shipping complexity of this item an additional shipping charge will be added when shipped.

Current Stock Status At These Ham Radio Outlet Locations
A144S5 Description     Hide

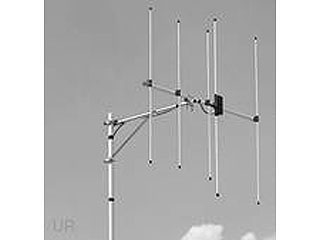

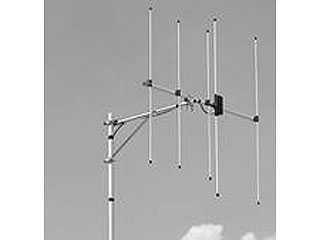

Diamond A144S5 antenna, shown mounted on optional Diamond KB144 side mount bracket.
Special Features:
• High Gain
• Easy Assembly
• Great for base or portable use.
• Quality Construction
• Factory adjusted
– No tuning required.

Specifications:

Power Rating: 100 Watts
Frequency: 144-148 MHz
Band: 2m Yagi (5 element)
Connector: UHF
Gain: 9 dBi
Weight: 1.4 lbs.
Boom Length: 37.5"
Max Wind Resistance: 80 MPH

Remarks: Driven element insulated from ground.
    Manufacturer's Website
    Product Website
    Additional Product Info
