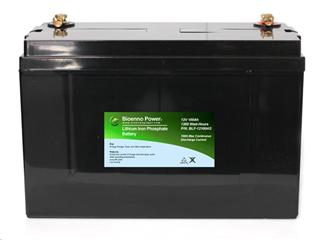

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-12100AS
is a state of the art 12V 100Ah battery. Putting out more power than a 12V 200Ah SLA at one fifth the weight and featuring Bioenno Power's unique integrated computer-control system, this battery offers you not only ABS hard-case ruggedness but also light weight and ease of use. Providing 2000+ charge cycles, 5-10+ years service life and 90% capacity discharge capability, this gives you more of everything making this the go to solution for any high power application. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 15A with Alligator Clips.
Please note that this battery should be charged using a LiFePO4 compatible charger, and not a charger for SLA batteries.
Before discharge confirm terminal screws are wrench tightened to ensure proper contact is made!
BLF-12100AS User Manual [PDF]
BLF-12100AS (ABS Sealed) Battery Specifications
Case Type: ABS Sealed
Maximum Continuous Continuous Discharge Current: 100A
Maximum Peak Pulse Current: 200A (5 sec.)
Max Power Delivered to Load at 12V: 1,200 Watts
Charge Connector: Screw Terminal
Discharge Connector: Screw Terminal
Dimensions: 12.9 in. x 6.6 in. x 8.5 in. (330 mm x 168 mm x 216 mm)
Weight: 28.2 lbs. (12.8 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110 VAC AC-to-DC Charger
Compatible AC-to-DC Charger Specifications
Input Voltage: 110VAC
Output Voltage: 14.6VDC
Connector: Alligator Clipper
Model Number: BPC-1520C
