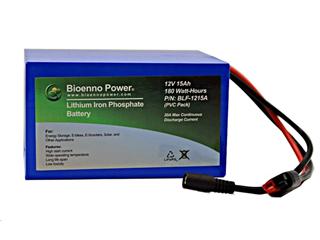

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1215A is a state of the art 12V 15Ah battery. Only slightly larger than our 12Ah battery, this product is just as compact while offering increased capacity. With applications ranging from audio amplifiers and audio-visual equipment to powering critical surveillance equipment, this is one of our most versatile larger capacity units that focuses on portability and small form factor. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has an available 110VAC/220 VAC AC-to-DC charger, that provides 4A, with a DC Plug. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.
BLF-1215A User Manual [PDF]
BLF-1215A Battery Specifications
Voltage: 12V
Capacity: 15 Ah
Case Type: PVC Pack

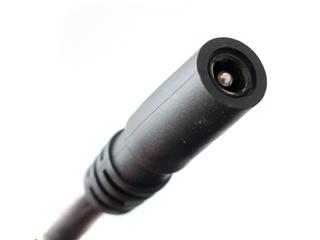

Charge Connector: DC Barrel Plug

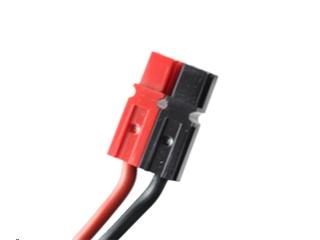

Discharge Connector: Anderson Powerpole
Maximum Continuous Discharge Current: 30A (Make sure your electrical load consumes less than 30A)
Maximum Peak Discharge Current: 60A (2 sec.)
Max Power Delivered to Load @ 12V: 360 Watts (12V x 30A = 360 Watts)
Dimensions:(L x W x H) 5.5 in. x 4.3 in. x 3.2 in. (137 mm x 107 mm x 78 mm)
Weight: 4.3 lbs. (1.9 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger
Compatible AC-to-DC Charger Specifications
Input Voltage: 120VAC/220 VAC
Output Voltage: 14.6VDC
Current: 4A
Connector: DC Plug
Model Number: BPC-1504DC
