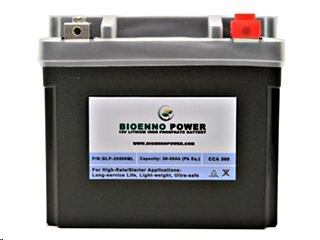

Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery, Model BLP-20500M is a 12 Volt /20-30 Ah (lead acid equivalent) battery based on state-of-the-art Lithium Iron Phosphate electrodes.
This battery is intended for motorcycle/powersports starter applications (and not for deep cycle applications.) This high discharge rate battery offers
500CCA for starter applications! The applications for this battery include motorcycle/powersports equipment. The battery includes a PCM (protection circuit module) which provides complete protection and balancing of the cells in the battery and has an available 110VAC/220 VAC AC-to-DC charger.
BLP-20500M User Manual [PDF]
Features:
- Most advanced high-power Lithium Iron Phosphate battery technology from Bioenno Power
- Super lightweight battery. Only 1/3 the weight of a lead acid battery
- Built-in protection board, preventing battery and protection from overcurrent, undervoltage (overdischarge), and overvoltage
- Remarkably low self-discharge for extended storage periods up to one year
- More than 2000-3000 times charging/discharging cycles, and an outstanding 7-10year service life
Lead Acid Equivalent Capacity: 20-30Ah
Replacement: YB16-B,YB16C-B,YB18-A,YTX20-BS, YTX20H-BS, YHD-12H
Applications:Motorcycle/powersports starter
Specifications:
BLP-20500M
Voltage: 12V
Cold Cranking Amps: 500CCA
ABS Case
Connector: Screw
Dimensions: 6.88 in. x 3.42in. x6.1in. (175 mm x 87mm x 155mm)
Weight: 4.4lbs. (2kg.)
Includes built-in PCM (protection circuit module) which provides balancing of internal cells, and protection from overcurrent, undervoltage (overdischarge), and overvoltage
Available 110 VAC/220 VAC Charger
AC-to-DC Charger Specifications
Input Voltage: 110VAC/220 VAC
Output Voltage: 14.6VDC
Current:4A
