The

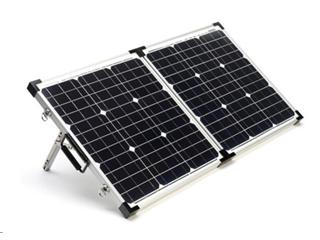

Bioenno Power BSP-80 model 80 Watt Foldable Solar Panel is a high output monocrystalline solar
panel system designed for ease of use. The mid-range unit of the Bioenno Power high-power line, the BSP-80 offers increased power output versus our standard BSP-28 folding panel in a smaller and lighter form factor than our full power BSP-120 model 120 Watt solar panel while maintaining compatibility with
Bioenno Power Packs. A Bioenno Power solar system offers clean and modulated output while being completely silent with no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference). And unlike traditional gasoline generators, sunlight is a bottomless fuel-source you don’t have to pay for. With a solar system, as long as you have sun you have electricity.
Please note: Our Solar Panels DO NOT include the Solar Charge Controller - it is sold separately. Always use a Solar Panel with a matching Solar Charge Controller when using with battery – attaching a panel directly to a battery is not advised.
BSP-80 Specifications
Maximum Power Output: 80 Watts (40 Watts per panel)
Maximum Voltage: 18 Volts (per panel)
Maximum Current: 2.25 Amps (so 4.5 Amps for both, if in parallel)
Open Circuit Voltage: 22 Volts (per panel)
Short Circuit Current: 2.48 Amps (so 4.96 Amps for both, if in parallel)
Dimensions Folded: 23.5 in. x 25 in. x 2.75 in. (596.9 mm x 635 mm x 69.9 mm)
Dimensions Unfolded: 46.5 in. x 25 in. x 1.5 in. (1181.1 mm x 635 mm x 38.1 mm)
Weight: 18.8 lbs. (8.5 kg.)
Temperature Range: -49°F ~ 185°F (-45°C ~ 85°C)
Connector: 50A Power Pole
Chaining Requirements
Product can only be chained with matching Solar Panels of the same model with matching voltage and current
Series: Okay to chain, any number of panels acceptable
Parallel: Okay to chain, any number of panels acceptable
Chaining Requirements*
Product can only be chained with matching Solar Panels of the same model with matching voltage and current
Series: Okay to chain, any number of panels acceptable
Parallel: Okay to chain, any number of panels acceptable
*Wiring and cabling for chaining available upon request
