ALPHA-DELTA DX-LB PLUS
ALPHA-DELTA-DX-LB PLUS-Image-1 ALPHA-DELTA-DX-LB PLUS-Image-2

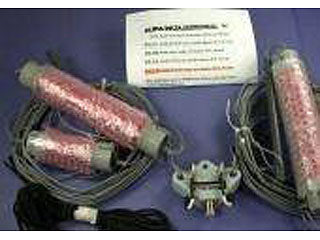

ALPHA-DELTA DX-LB PLUS

160 through 10 Meter Dipole Kit

HRO Discount Price: $199.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
DX-LB PLUS Description     Hide

Same as description below with parallel wires for operation on 20 thru 10 meters. Low Band Dipole Covers 160-80-40 meters with an overall length of only 100 ft. Antenna performance and 2:1 VSWR bandwidth is site dependent and varies with height above ground and surrounding objects. The typical bandwidth is: 160M / 20kHz / 80M - 40 kHz - 40M - 300 kHz Full band coverage can be accomplished with an antenna tuner. Built with insulated 12 ga. wire, stainless steel hardware and uses the Model DELTA-C static protected center insulator and CIN end insulators. Use coax or open wire line and configure as a dipole or inverted-V. Assembled and ready to go!
    Manufacturer's Website
    Product Website
