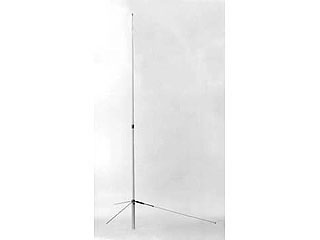

The V2000A is the U.S. version of the V2000 Tri-Band Antenna. This antenna has been optimized for the U.S. FM Bands. The V2000A utilizes a linear phase shift design to couple the different frequency band sections together. A watertight joint assembly connects the two antenna sections into one rigid assembly. The resulting antenna has the same strength as a one piece structure.
Frequency (MHz): 52-54/144-148/440-450
Impedance (nominal): 50 Ohms
VSWR: 1.5:1 (typical)
Power Rating: 150 Watts
Element Phasing: 1/2l/2-5/8l/4-5/8l
Max Wind Rating: 112 m.p.h.
Mast Dia. Acceptance: 1.2 to 2.4 inches
Length/Weight 8.3 ft./2.6 lbs.
Connector: SO-239 Female
