HY-GAIN VB-25FM

HY-GAIN VB-25FM

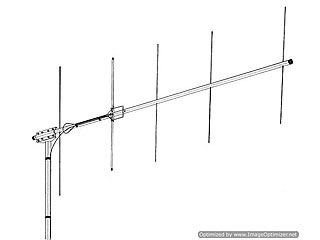

144 MHz 5 Element Rear Mounted Vertically Polarized Yagi Beam Antenna - 2 Meters

HRO Discount Price: $127.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
Anaheim, CA
Atlanta, GA
Denver, CO
Milwaukee, WI
New Castle, DE
Phoenix, AZ
Plano, TX
Portland, OR
Sacramento, CA
Salem, NH
Winter Springs, FL
Woodbridge, VA
VB-25FM Description     Hide

These 2 Meter FM beam antennas include Hy-Gain's exclusive BetaMatch to provide exceptional Front-to-Back ratio and maximum obtainable gains. The VB-25FM gives you a wide choice of 2 Meter Beam performance from which to choose. Accepts up to 2 inch mast.

Single piece 75" boom. Shipping charges start at $20 for this item.

Specifications
Mechanical
Boom Length 75” (1905 mm)
Longest Element 39 5/8” (1006 mm)
Net Weight 2.9 lbs (1.3 kg)
Turning Radius (Max) 73” (1854 mm)
Wind Survival 80 mph (129 kmph)
Mast Diameter 1 5/8” to 2 1/16” O.D. (41mm to 52mm)
Boom Diameter 1 ¼” O.D. (32mm)
Wind Area 0.585 sq. ft (.054 m^2) (horizontal)
0.740 sq. ft (.0688 m^2) (vertical)
Electrical
Gain (Average) 11.3 dBi (9 dBd)
Front-to-Back Ratio 20 dB
Maximum SWR 2:1
Band Width 4 MHz
Maximum Power 250 Watts continuous, 500 Watts P.E.P
Impedance 50 Ohms (with balun)
Half-Power Beam Width 60 degrees (vertical polarization)
45 degrees (horizontal polarization)
Stacking Distance 82” (2083 mm) minimum
