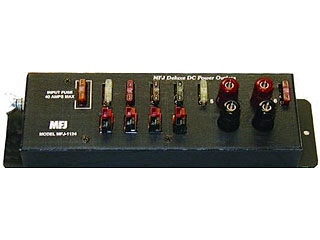

6 outlets. Installed fuses: one 1A, one 5A, two 10A, two 25A, one 40A. Outlets 1-4 are PowerPole®. Outlets 5, 6 are 35A high current binding posts. Includes 4 pair PowerPole® 8 40A contacts, 5 fuses (1ea, 1,5,10,25,10) 8Wx11/4Hx23/4D inches.
Each Anderson PowerPole® outlet can carry up to 40 Amps. You can fuse each outlet as needed to protect your accessories or transceiver. The main fuse is 40 Amps.
The standard color coded fuses simply plug in from outside. They are widely available ATC/ATO automobile fuses and can be used for 6, 12, 24 VDC systems.
