HF + 50 MHz Cross Needle SWR / Wattmeter - 1.8 - 54 MHz - Peak Reading and Average Power

HRO Discount Price: $119.95*


*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
MFJ-815D Description     Hide

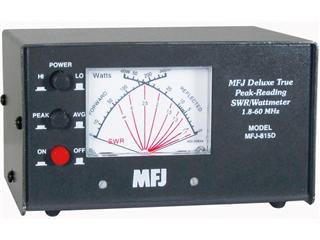

MFJ-815D reads true-peak or average power on a large illuminated three-inch Cross-Needle Meter.

Its TrueActive peak reading circuit gives you an incredibly accurate SWR and power reading in SSB and CW over a wide frequency range.

The Cross-Needle Meter reads SWR and true peak average, forward and reflected power simultaneously -- all in a single glance.

You get Frequency coverage from 1.8 to 60 MHz. Has mechanical adjustment for accurately zeroing the meter.

Push button selects range, meter lamp on/off and peak for SSB or average for CW operation. SO-239 Connectors.

MFJ-815D has 3000 and 300 Watts forward and 600/60 Watts reflected power ranges. Read SWR from 1:1 to 8:1.

LED Meter lamp uses 12 VDC or 110 VAC with optional MFJ-1312D

TrueActive Peak Reading Circuit can use 9 Volt battery.

All metal black aluminum cabinet measures 6W x 3 1/2H x 4 1/2D inches.

- Covers 1.8-60 MHz - LED Backlighted lamp - Large 3” Cross-Needle Meter - True Active Peak Reading Circuit
