The
Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery, Model BLF-1203W is a 12 Volt / 3 Ah battery based on state-of-the-art Lithium Iron Phosphate electrodes. This particular battery can be used for energy storage applications. The battery has a built-in
PCM/BMS (protection circuit module / battery management system) which provides complete protection and balancing of the cells in the battery and has an available 110 VAC/220 VAC AC-to-DC charger, that provides 2 Amps with a DC Plug.
Please note that this battery should be charged using a LiFePO4 compatible charger, and not a charger for SLA batteries.
BLF-1203W User Manual [PDF]
BLF-1203W Battery Specifications
Voltage: 12 Volts
Capacity: 3 Ah
PVC Soft Pack

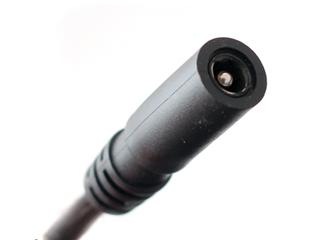

Charge Connector: DC Plug

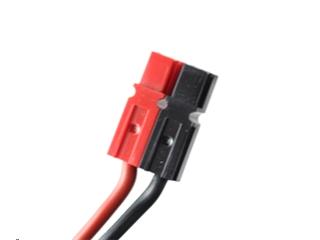

Discharge Connector: Anderson Powerpole
Maximum Continuous Discharge Current: 6 A (Make sure your load consumes less than 6 A)
Maximum Peak Pulse Current: 24 Amps (for 2 sec.)
Max Power Delivered to Load @ 12 Volts: 72 Watts (12V x 6A = 72 Watts) (Make sure your load consumes less than 72 Watts Continuous)
Dimensions: 3 in. x 2.5 in. x 1.5 in. (76 mm x 64 mm x 38 mm)
Weight: 0.9 lbs. (0.41 kg.)
Includes built-in PCM (protection circuit module) which provides balancing of internal cells, and protection from overcurrent, undervoltage (overdischarge), and overvoltage
Available 110 VAC/220 VAC Charger
Please note you can also use an adapter to convert the output connector from the battery to various outputs including a DC plug.
