TALLEY SD3352-HF1PASNF(D00B)

406-512 MHZ 8.5 dBd Exposed Dipole Antenna N-Female - PLUS FREIGHT

Special Order Item!*

HRO Discount Price: $2,859.95*



*After Coupons & Promotions. Due to the shipping complexity of this item an additional shipping charge will be added when shipped.

Current Stock Status At These Ham Radio Outlet Locations

*This item is ordered directly from the factory. In some cases it may be drop shipped directly to you.

For current inventory status please contact your local Ham Radio Outlet and a salesperson will assist you.

SD3352-HF1PASNF(D00B) Description     Hide

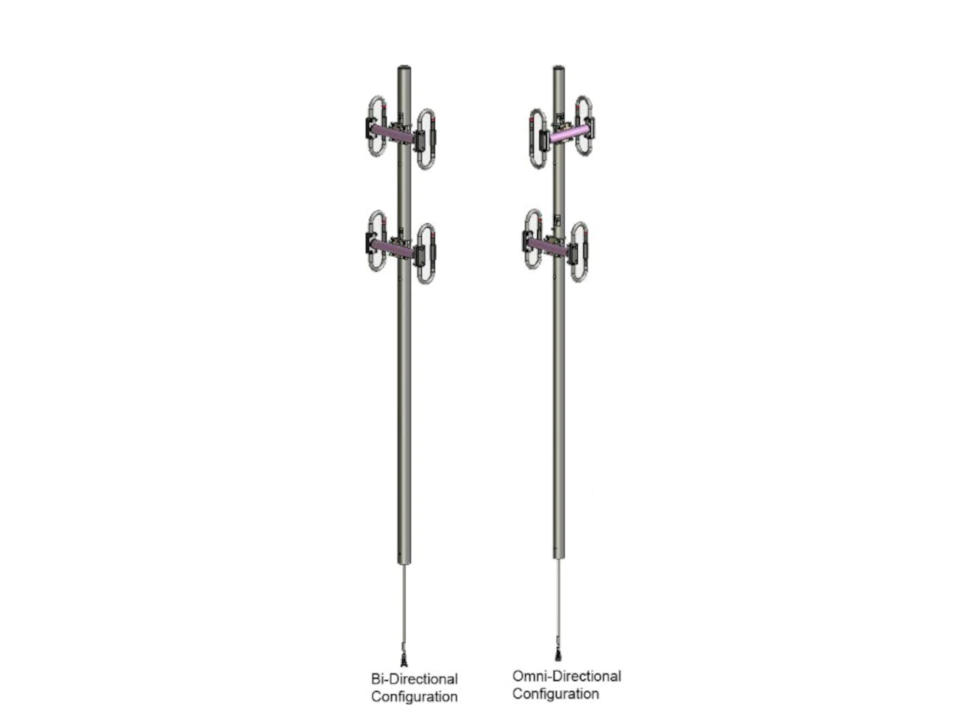

SINCLAIR's SD3352-HF1PASNF(D00B) 406 – 512 MHz Exposed Dipole, 6/8.5 dBd, field adjustable, N Female connectors, HD, 0 deg. downtilt

Technical Specs:

  • Gain dBd: 8.5 dBd, 6 dBd
  • Item Weight: 26 lb
  • Maximum VSWR: 1.5:1
  • Manufacturer: Sinclair Technologies
  • Item Width: 12.75 in
  • Lightning Protection: DC Ground
  • Maximum Rated Wind Velocity: 180 mile/h
  • Gain dBi: 10.6 dBi
  • Item Height: 114 in
  • Vertical Beamwidth: 15 deg
  • Item Length: 12.75 in
  • Antenna Pattern: Adjustable
  • Specific Frequency: 406-512 MHz
  • Maximum Power: 300 W
  • Polarization: Vertical
  • Qty/ Uom: 1 Each
  • RF Connectors: N Female
