OPEK OP-PS3002

The OPEK OP-PS3002 power supply is designed for simple reliable operation and includes Powerpole connectors on the front and rear mounted binding posts.

Features:

• Compact Desktop Design

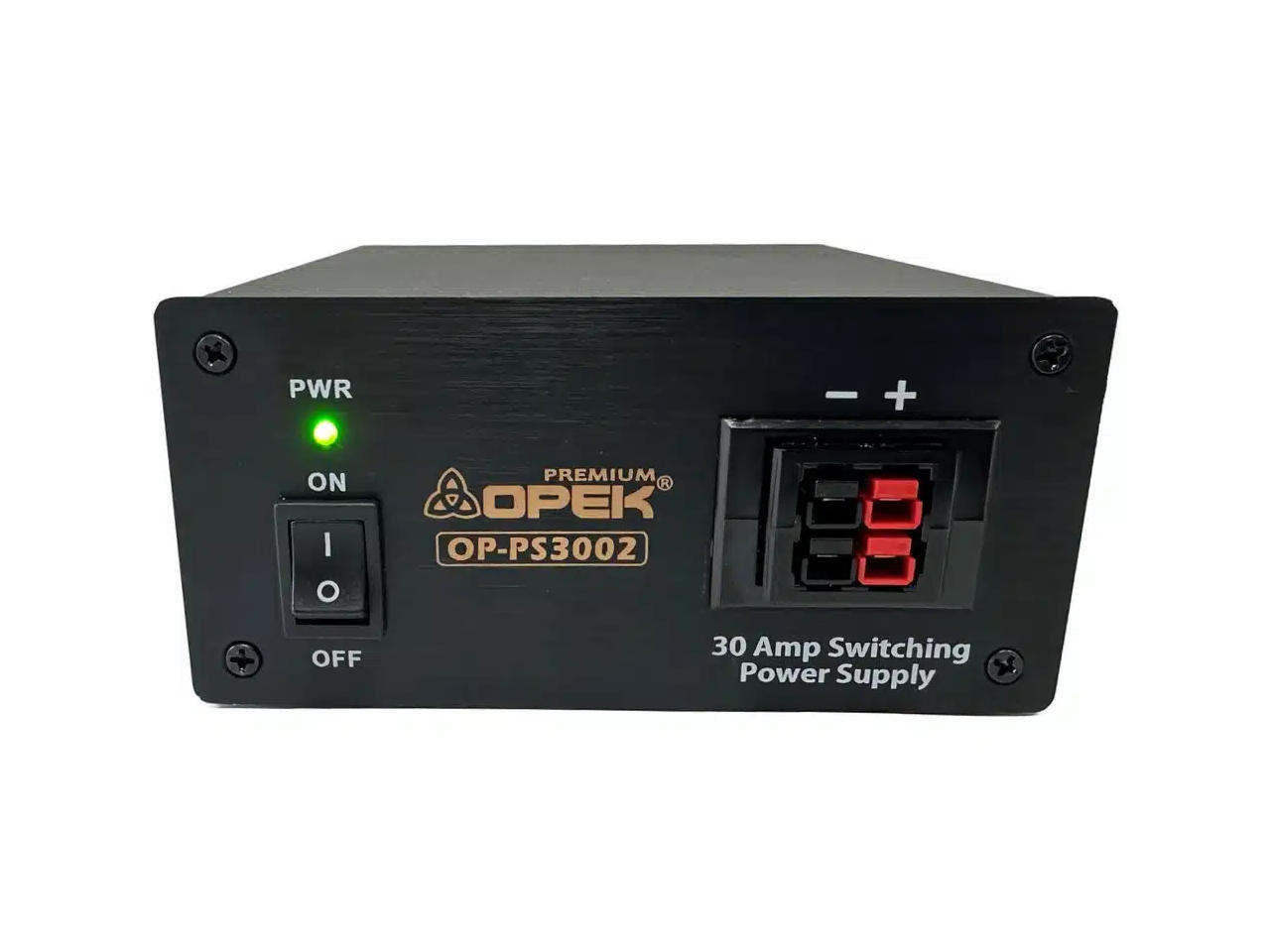

• Dual Powerpole Connectors on front, Binding Posts located on rear
• DC Output: 25 Amps continuous / 30 Amps Surge @ 13.8 VDC
• Voltage Input 100-120 VAC, Quiet Variable Speed Fan design
• Dimensions: (6” x 5” x 2.5”) and 2-Year Manufactures Warranty



The OPEK OP-PS3002 power supply is designed to run almost any 12 Volt Power electronic product with clean and reliable power. Power your DC devices using either the front mounted dual Powerpoles or rear mounted 1/4″ binding Posts. DC output voltage of 13.8V rated for 25A continuous and 30A surge.

Dual DC Power Outputs:

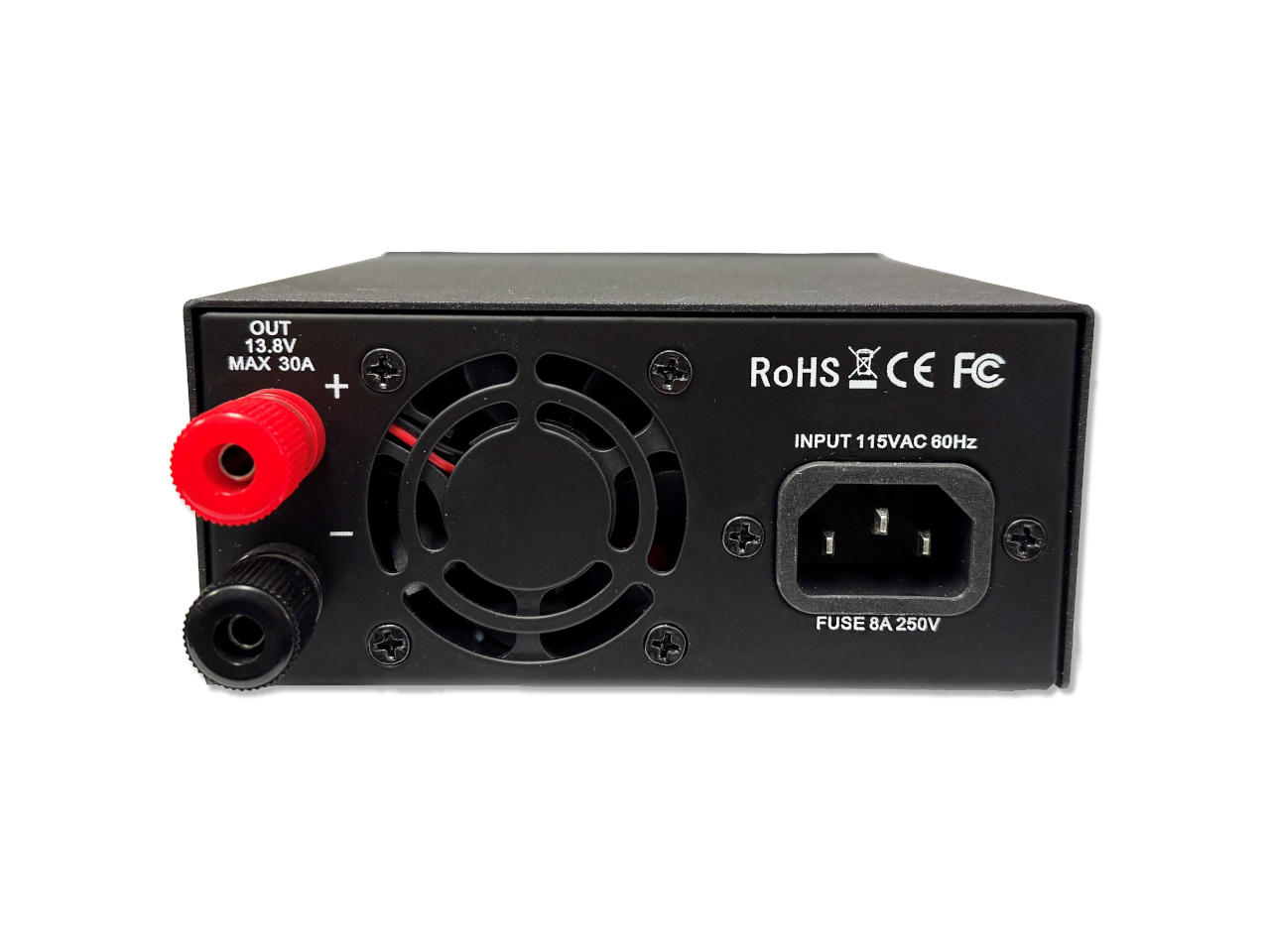

• Power your radio and equipment with either the front mounted dual Powerpoles or rear mounted 1/4″ binding posts. Binding posts can also accept banana plugs.

Cooling:

• The OP-PS3002 power supply is cooled by convection and forced air cooling. That is normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use. The fan is always activated and the speed is controlled by a sensor. When the temperature rises, the fan speed increases.

Applications:

• Ham Radio / Amateur Radio Applications
• Land Mobile Radio Base Stations
• Communications Systems
• Security Systems
• Test Equipment
• Plotters
• GPS Receivers
• Automotive and Marine Displays
• DC Computers
• 12 Volt Lighting Systems
• OEM Applications

Specifications:

• Input Voltage: 100-120V AC
• Input Frequency: 57-63Hz
• Polarity Grounded: Negative
• Output Voltage: 13.8V DC
• Continuous Output Current: 25A
• Max Output Current: 30A
• Rippled & Noise: <100mVpp
• DC Output - Front: Dual Powerpoles
• DC Output - Rear: Binding Posts/Banana Plugs
• Internal Protection: Over-Temperature, Short-Circuit, and Over-Current
• Variable Fan: Yes - Thermally Controlled
