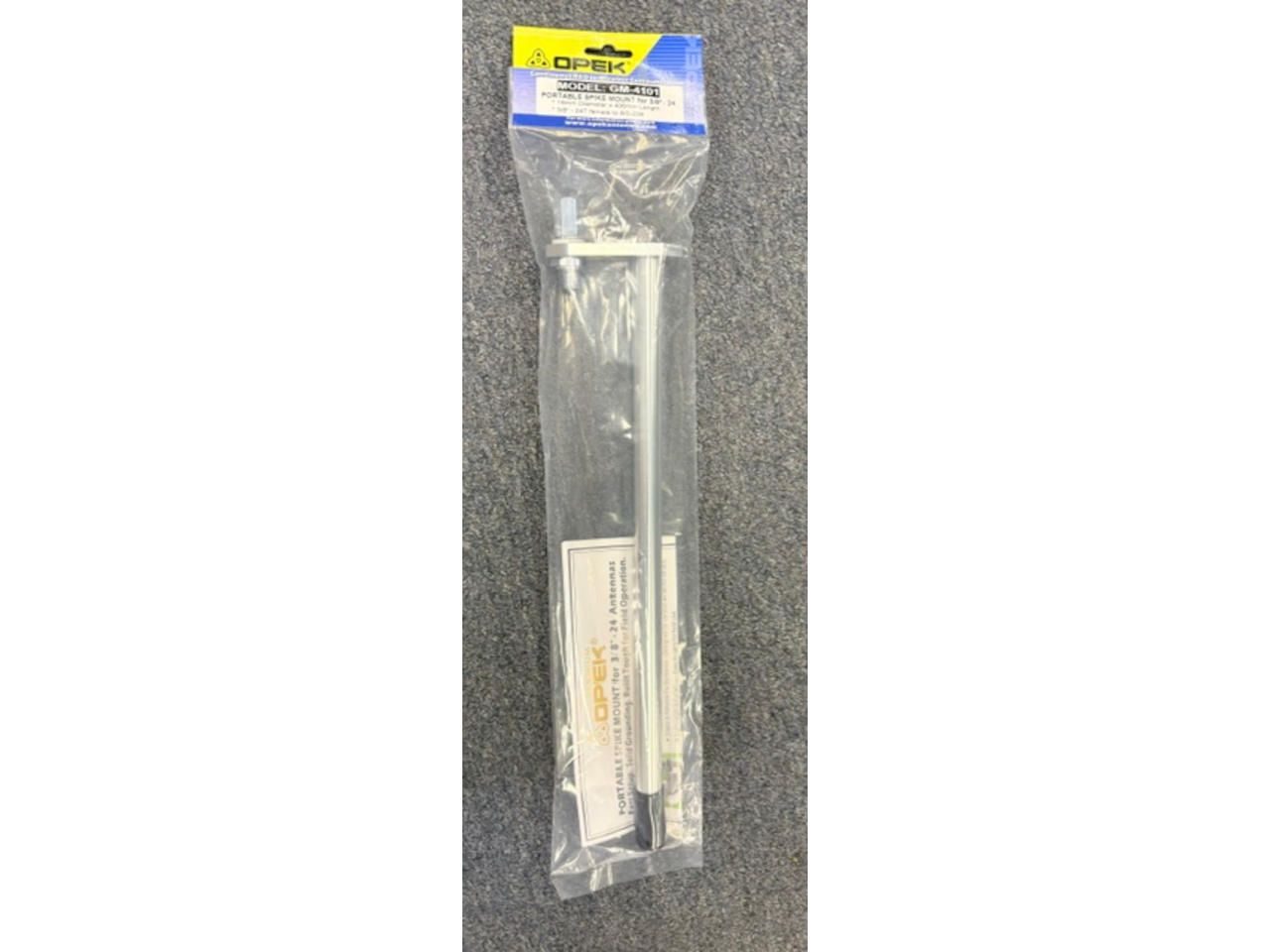

Opek GM-4101

PREMIUM PORTABLE SPIKE MOUNT for 3/8"-24 Antennas
Fast Setup. Solid Grounding. Built Tough for Field Operation.

WHY THIS IS YOUR BEST CHOICE:

• Instant Ground Deployment - Insert into soil and operate within seconds.
• Stable & Reliable Performance - Designed for vertical antenna setups.
• Lightweight & Portable - Easy to carry for field use.
• Universal Compatibility (3/8"-24) - Works with most vertical amateur and CB antennas.
• Quick Radial Connection - Improve performance with easy radial attachment.

SPECIFICATION:

• Spike: 18mm Diameter x 406mm Length | Wind: 20 mph
• Body Plate: with OPEK SM-1 (3/8"-24T female to SO-239)
• Radial Terminals: 2 x 6mm connections
• Dimensions: 42 x 4 x 7.5 cm

HOW TO INSTALL:

• Step 1 - Insert into Ground: Push spike firmly into soil or grass.
• Step 2 - Attach Antenna: Screw 3/8"-24 antenna onto mount.
• Step 3 - Connect Coax: Connect cable to SO-239 and radio.
• Step 4 - Add Radials: Attach radials for better performance.

APPLICATIONS:

• Portable HF operation
• Field Day setups
• Emergency communications
• Camping & off-grid use

Additional Information:

Heavy Duty Portable Ground Spike Mount for Standard Thread 3/8"-24 Vertical Antennas

• For Standard Thread 3/8"-24 Antennas (HF Amateur or CB Mobile Antennas)
• Body Plate with OPEK SM-1 (3/8"-24T female to SO-239 connector), and 3/8"-16T hole
• Aircraft Aluminum Level Ground Spike (Ø18mm x 406mmL (16"))
• Impedance: 50 Ohm
• Wind Rating: 32Mph
• Radial Terminals: 2 x 6mm connections
• Dimensions: 42 x 4 x 7.5 cm
