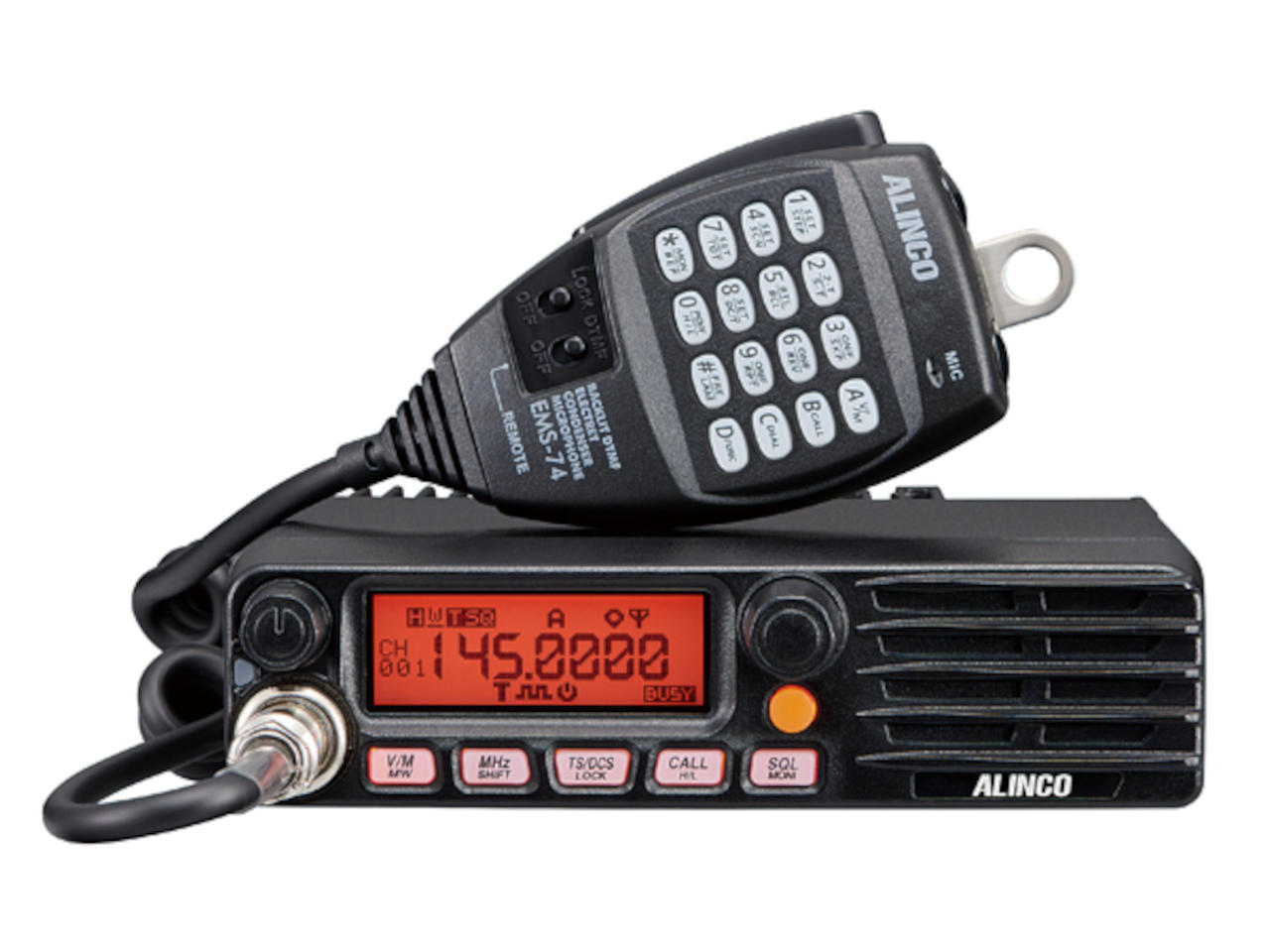

The DR-B185Mk2 is a High-Performance VHF Mobile Radio Transceiver built for Amateur Radio And/Or Base Station (with optional power supply) applications.
With a Rugged, MIL-STD-810G-rated Construction and up to 90 Watts of Output Power, this unit delivers Reliable, Long-Range Communication even in the most demanding environments. An integrated cooling fan and Advanced Noise Cancellation ensure stable performance and crystal-clear audio during extended use.
Features:
- Selectable output power: 90W / 30W / 10W / 5W
- PC-programmable, 200 channels
- Alphanumeric name tags
- New noise reduction function reduces surrounding noise during transmissions
- Built-in GPS and APRS keep you connected and let you share location and track others in real time (TMk2 Amateur Models Only)
- Voice Compander enhances receiver audio clarity
- Wide variety of built-in selective calling: 2-Tone, 5-Tone, 50 CTCSS, 114 DCS, 4 Tone-burst, and DTMF/ANI decode
- Radio stun/kill/revive functions protect communication security
- Large, bright LCD with easy-to-operate backlit keys
- Multi-function backlit microphone enables direct frequency entry and more from the keypad
- Airband and FM broadcast receiver with 20 memory channels (Airband on TMkII Amateur Models Only)
- Various scan modes, key lock, and Wide/Narrow operation at no extra cost
- Integrated cooling fan promotes stable operation during prolonged use
Specifications
- Frequency Range: Mk2 RX 136-174MHz / TX 144-148MHz AM / 76-108MHz WFM
- Number of Channels: 200
- Channel Spacing: 25KHz (Wide) / 20KHz (Middle) / 12.5KHz (Narrow)
- Channel Step: 2.5, 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50KHz
- Operating Voltage: 13.8V DC ±15%
- Squelch: Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
- Frequency Stability: ±1.5ppm
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Dimensions: 160(W) x 43(H) x 185(L)mm (6.3 x 1.7 x 7.3 in) approx.
- Weight: 1.29kg (45.5oz) approx.
- Power Output: 90W / 30W / 10W / 5W (Wide or Narrow mode)
- Audio Power Output: greater than 2W @ 10%
- Rated Shock/Vibration: MIL-STD-810G, Method 514.6/IV (Shock), Method 516.6/I (Vibration)

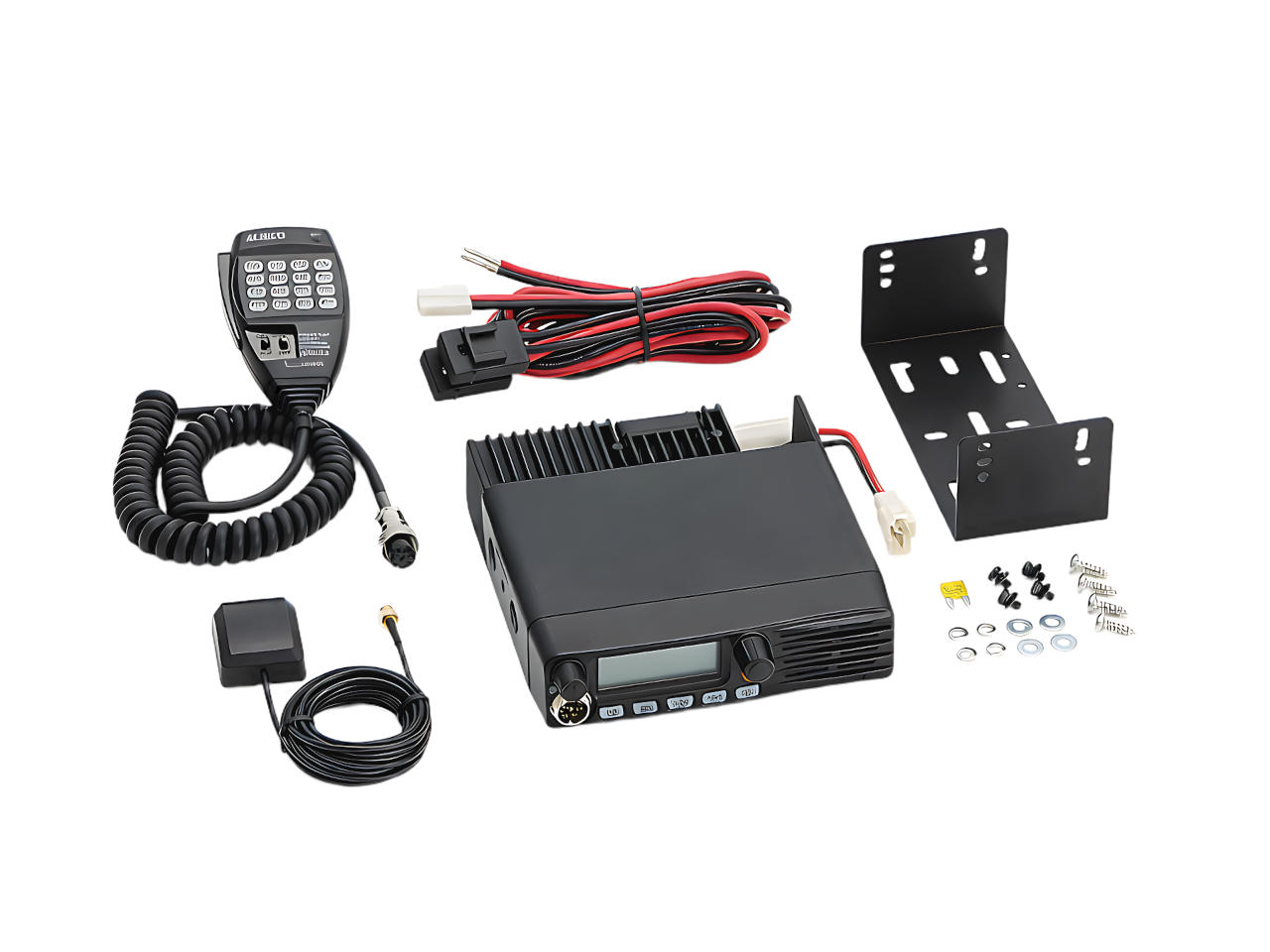

Standard Accessories:
- ADB185M2 - Mobile Bracket
- ADUA107 - DC Power Cable (15A Fuse)
- EMS-74 - Backlit Keypad Microphone
- EA-0289 - GPS Antenna
