Black 144 / 440 MHz Dualband Vertical Mobile Antenna - 40 Inches tall - UHF Connector - Black

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $54.95*


*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
NR-770HB Description     Hide

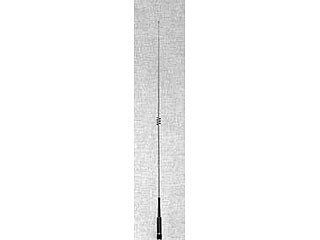

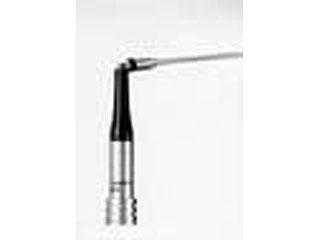

The Diamond Antenna NR770HB Dualband VHF/UHF Mobile Antenna is resonant on the 2m and 70cm amateur bands. The NR770HB is a 1/2-wavelength design providing 3.0 dB of gain on the 2m band, and a 2 x 5/8-wavelength design providing 5.5 dB gain on the 70cm band. The NR770HB is 40" tall and weighs 200 grams. The NR770HB features fold-over ability for entry into low overhead clearance areas. Power rating is 200/200 Watts. The connector type is a gold-plated UHF/PL-259. Black finish. Grounding is not required.

Requires A Mount: Magnetic, Permanent, Trunklip, etc...


Bands: 2m/70cm
Color: Black
Gain dBi: 3.0/5.5
Watts: 200
Height: 40.2"
Mount: UHF
Element Phasing: 1-1/2 Wave VHF, 2-5/8 Wave UHF
