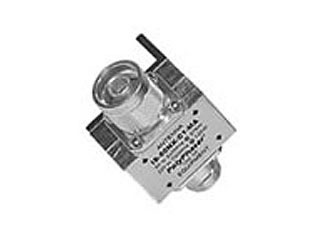

The Polyphaser IS-50NX-C1-MA is a coaxial surge protector. It assures surge voltages and currents are prevented from being passed to other equipment. DC blocked, low loss, wide frequency range, low VSWR, aluminum enclosure, multiple strike capability.
Mount Type Flange
Frequency Range 50 MHz to 700 MHz
Protected Side Connector
N Female
Surge Side Connector N Male
Turn On Voltage 600 Vdc ± 20 %
VSWR = 1.1:1 60 to 700 MHz
Insertion Loss = 0.1 dB
RF Power VHF 375 W, UHF 125 W
