Jumpered internally for Icom radios.
Includes 13 pin DIN cable to fit IC-706 series, IC-718, IC-7000, IC-7100, IC-7200, IC-7300, IC-7410, IC-9100 and other Icom radios that have a 13 pin DIN plug.

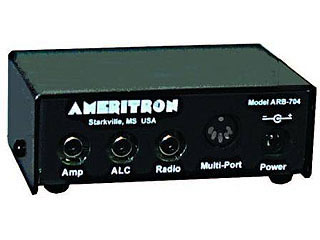

The ARB-704 will work with almost any transceiver without the need of the plug-and-play cable.
The ARB-704 advanced interface is compatible with all common radios and amplifiers even though radios and amplifiers do not have standardized voltages, accessory plugs, or wiring. This interface is designed to work with any amplifier/radio combination.
The input is designed to be compatible with any transmitter or transceiver, and the output is compatible with AC control lines or DC positive or negative amplifier control lines having up to 200 Volts peak open circuit voltage and 300 mA of operating current.
