The

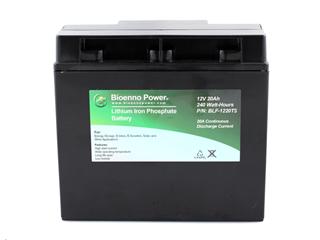

Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1220TS is a 12 Volt/20 Ah battery based on state-of-the-art Lithium Iron Phosphate electrodes.
The battery has a built-in PCM/BMS (protection circuit module / battery management system) which provides complete protection and balancing of the cells in the battery and has an available optional 110VAC/220 VAC AC-to-DC charger, which provides 4A, and Alligator Clips. This battery is housed in an
ABS Sealed Case.
Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.
BLF-1220TS Battery Specifications
Voltage: 12V
Capacity: 20Ah
Case: ABS Sealed

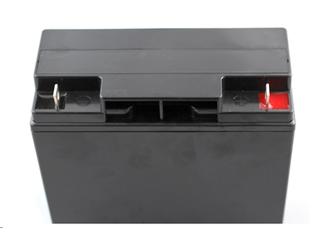

Charge/Discharge Connector: Blade Terminal with Holes
Maximum Continuous Discharge Current: 20A
Maximum Peak Discharge Current: 30A (30 sec.)
Max Power Delivered to Load @ 12V: 240 Watts (12V x 20A = 240 Watts)
Dimensions: 7.09 in. x 6.54 in. x 2.95 in. (180 mm x 166 mm x 75 mm)
Weight: 7 lbs. (3.18 kg)
Includes built-in PCM (protection circuit module) which provides balancing of internal cells, and protection from overcurrent, undervoltage (overdischarge), and overvoltage
