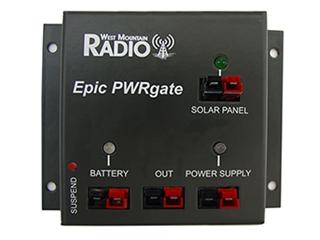

West Mountain Epic PWRgate 58404-1673

FEATURES:

• Epic PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
• Connected equipment will instantly switch to battery during a power blackout or power supply failure.
• Low loss PWRgate provides forward voltage drop of only 0.05 volts.
• USB port access to monitor system or to change charge parameters.
• Program for specific battery types.
• Untilizes MPPT Smart Charging Technology for either Lead Acid or Li-Ion battery charging up to 10 Amps.
• Optional direct solar panel input for battery charging (all chemistries). Solar panel VOC must be <= 30V.
• Can be programmed for vehicle use to suspend charging when the alternator is off.
• Complete LED status indicators.
• Battery charge suspend button to eliminate current draw or charger noise for 30 minutes.
• Optional temperature probe to control charging based on battery temperature.
• Solid, durable construction in an aluminum case. Includes mounting holes for convenient and secure use in mobile units.
• Uses Anderson Powerpole connectors.
• Includes: Epic PWRgate Unit, USB-micro Cable, (4) Retention Clips, Owners Manual, Reference Card
• Maximum Voltage: PS 16V / Solar 30V
• Maximum Current: 40 Amperes
• Voltage Drop: 0.05VDC
• Connectors: Anderson Powerpole, 40A
• Size: 4.5 x 3.375 x 1.25 in
• Weight: 0.35 lbs
• Mounting Holes: Four - 0.175 d, #8 hardware
