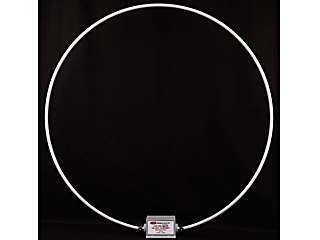

Chameleon Antenna CHA RXL PRO

Chameleon Antenna CHA RXL PRO

High Performance Receive-Only Loop Antenna 50.0 KHz - 30.0 MHz Continuous

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $524.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
CHA RXL PRO Description     Hide

The CHA RXL PRO is a new design high performance Low Frequency (LF), Medium Frequency (MF), and High Frequency (HF) receive-only loop antenna that can be permanently mounted outside on a mast or used on a camera tripod. It's broadband design is ideal for Software Defined Radios (SDRs), panadapters, shortwave listeners (SWLs), AM broadcast band listeners, and anybody wanting a small low noise receive-only antenna.


Some of the key features of the CHA RXL PRO are:

  • Wideband design – LF / MF / HF
  • Highly directional
  • Balanced input preamplifier to eliminate environmental noise and ground loops
  • Flexible mounting and power options
  • Stealthy – Navy gray loop fades into the background sky. DO NOT REFLECT LIGHT

Receive loops are very quiet and highly directional. With the built-in preamplifier, the CHA RXL PRO will enable clearer reception than many large horizontal wire or vertical antennas. The CHA RXL PRO covers all frequencies between 50.0 KHz and 30.0 MHz. Become a WSPR Reporting Station on the new 2200 and 630 meter bands and join the fun!


Loop Amplifier Specifications:

  • Frequency: 50.0 KHz – 30.0 MHz continuous
  • Power: 12V DC (120V AC wall adapter included USA ONLY)
  • Size: 36 in. Loop
  • Weight: 7 lbs.
  • Mount: Mast or Camera Tripod
  • Operating voltage: 12-14 VDC – Polarity Protected, Over-Voltage protection 15.5V – 20V (sustained voltage above 18V may damage the preamp)
  • Gain: At least 20dB + across all the bands!
  • Noise Figure: < 2 dB
  • P1dB: > 23dBm relative to the output
  • OIP2: > +90 dBm
  • OIP3: > +40 dBm
  • RF Power Applied to the Output: 0.25W maximum (do not transmit into the pre-amp)
  • Input Z: < 10 Ohms
  • Output Z: 50 Ohms
  • DEVICE : 4 X BFP 196 (INFINEON)
  • PROTECTION: 2 X SMP1330 (SKYWORKS)
  • MIL-SPEC- 2169 HEMP PROTECTION


Bias-T Specifications:

  • Operating Voltage: 12-14 VDC – Polarity Protected, Over voltage protection 15.5V – 20V (sustained operation above 18V may trip the resettable fuse)
  • Maximum Current: 300 mA max.
  • Insertion Loss: < 0.25 dB @ 30 MHz
  • VSWR: < 1.3:1 @ 30 MHz

The antenna system consists of:

1 X 36" Loop

1 X PreAmp Box

1 X 12V Power Supply

1 X BIAS-T

1 X Coax Cable (OPTIONAL - 25')

1 X "L" Bracket & Mounting Hardware

1 X Table Top Rubber Feet
