Xiegu X6100

Xiegu X6100 Firmware Upgrade (20220219)

2022.02.19 Upgrade Log | CLICK HERE to Download

APP: V1.1.4 Feb 16 2022,17:15:50
1. Add FFT peak hold switch, GEN > DISPLAY SETTING > FFT PK HOLD
2. Fix bug "Gate Way" can't save in "WLAN" setting page
3. Change rx volume from 0-50 to 0-55(5dB more than prev version)
4. Change CW decoder's threshold to a higher level(better robustness but needs higher SNR)
5. Calibrate the RX S-Meter giving more accuracy
6. Add ALC level indicator(at the top-right of the bandscope area, below the tx power strings)
7. Optimize the Fw flashing logic(base board will boot-up itself after flashed the Fw)

BASE: V1.1.4 Feb 15 2022,13:19:59
1. Fix bug built-in MIC feedback to speaker sometimes
2. Fix bug base board some times not booting at power on
3. Optimize ALC algorithm
4. Optimize SWR algorithm, less jumping around
5. Optimize switching power synchronization algorithm, less birdies

TIPS:
? ALC tricks
a) ALC level equ to 0: over driving, decrease input signal level
b) ALC level equ to 100: under driving, increase input signal level
c) When doing Digi,the audio baseband signals are almost constant amplitude,
adjust the soundcard volume to make ALC level between 20-80 to get good linearity

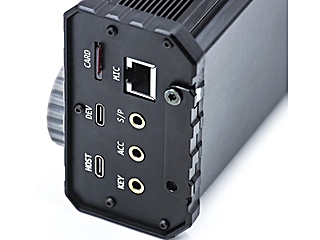

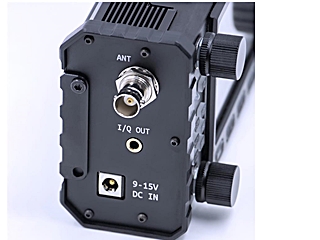

The All New Xiegu X6100 is an Ultra-Portable HF Transceiver.

The new X6100 utilizes a proven SDR software defined radio platform with impressive performance. A powerful baseband and RF unit with rich and diversified operating functions brings you a brand-new experience in Amateur Radio. With its compact structure and tiny appearance, you can immediately set forth on you next Ham Radio Adventure. Get close to nature and enjoy the fun of outdoor communications.

Features:

• SDR Software Defined Radio
• HF/50MHz Full Mode (supporting data communication)
• Transmitting Power: External power supply: 10W | Battery power supply: 5W
• 4" High-resolution Color Screen, 800*480
• Built-in 3000mAh Lithium Battery
• Built-in Automatic Antenna Tuner
• Integrated SWR Scanner & Voice Call
• Integrated Modem, Preset message, CW Automatic Call
• Built-in Bluetooth/Wifi function, enable wireless audio/keyboard/mouse operation
• Integrated USB control/transmission, supports USB HOST
• Built-in high-stability TCXO internal clock source

General Specifications:

Receive Frequencies:

• 0.5MHz - 30MHz
• 50MHz - 54MHz

Transmit Frequencies:

• 1.8 - 2.0MHz
• 3.5 - 4.0MHz
• 5.3515 - 5.3665MHz
• 7.0 - 7.3MHz
• 10.1 - 10.15MHz
• 14.0 - 14.35MHz
• 18.068 - 18.168MHz
• 21.0 - 21.45MHz
• 24.89 - 24.99MHz
• 28.0 - 29.7MHz
• 50.00 - 53.99MHz

Operation Mode:

• USB/LSB (J3E), CW (A1A), FM (F3E), RTTY(F1B), AM (A3E)
• Minimum Frequency Step: 10Hz
• Frequency Stability: ±1.5ppm
• External Power Supply Voltage: DC 9.0V~15.0V, negative ground
• Frequency Stability: ±1ppm (20 minutes after start)
• Antenna Port Impedance: 50Ω
• Antenna Interface Type: BNC
• Working Temperature: 0?~+55?
• Transmission power: External power supply: 10W | Battery power supply: 5W
• Current Consumption: Standby: 330mA (Max) | Transmit: 3A (Max)
• Overall Dimensions: About 180*86*49mm

Transmitter:

Transmitting Power:

• 10W (SSB/CW/FM) @13.8VDC | 5W @battery
• 2.5W(AM) @13.8VDC | 1.5W @battery
• Stray Suppression: 1.8 - 29.6MHz: ≥50dB | 50 - 54MHz: ≥60dB
• Sideband Suppression: ≥50dB
• Microphone Impedance: 200~10kΩ (600Ω in general)



Receiver:

• Circuit Type: ZIF

• Sideband Suppression: ≥50dB
• MDS: -138dB



Antenna Tuner:

• VSWR: 1:5.0
• Antenna tuner initial tuning time: ≤15s
• Antenna tuner tuning read time: ≤0.2s

What’s Included:

• 1 x Xiegu X6100 Transceiver
• 1 x USB Type-C Data Cable
• 1 x Multi-function Speaker Mic
• 1 x Power Adapter
• 1 x Charging Cable
• 1 x User Manual
