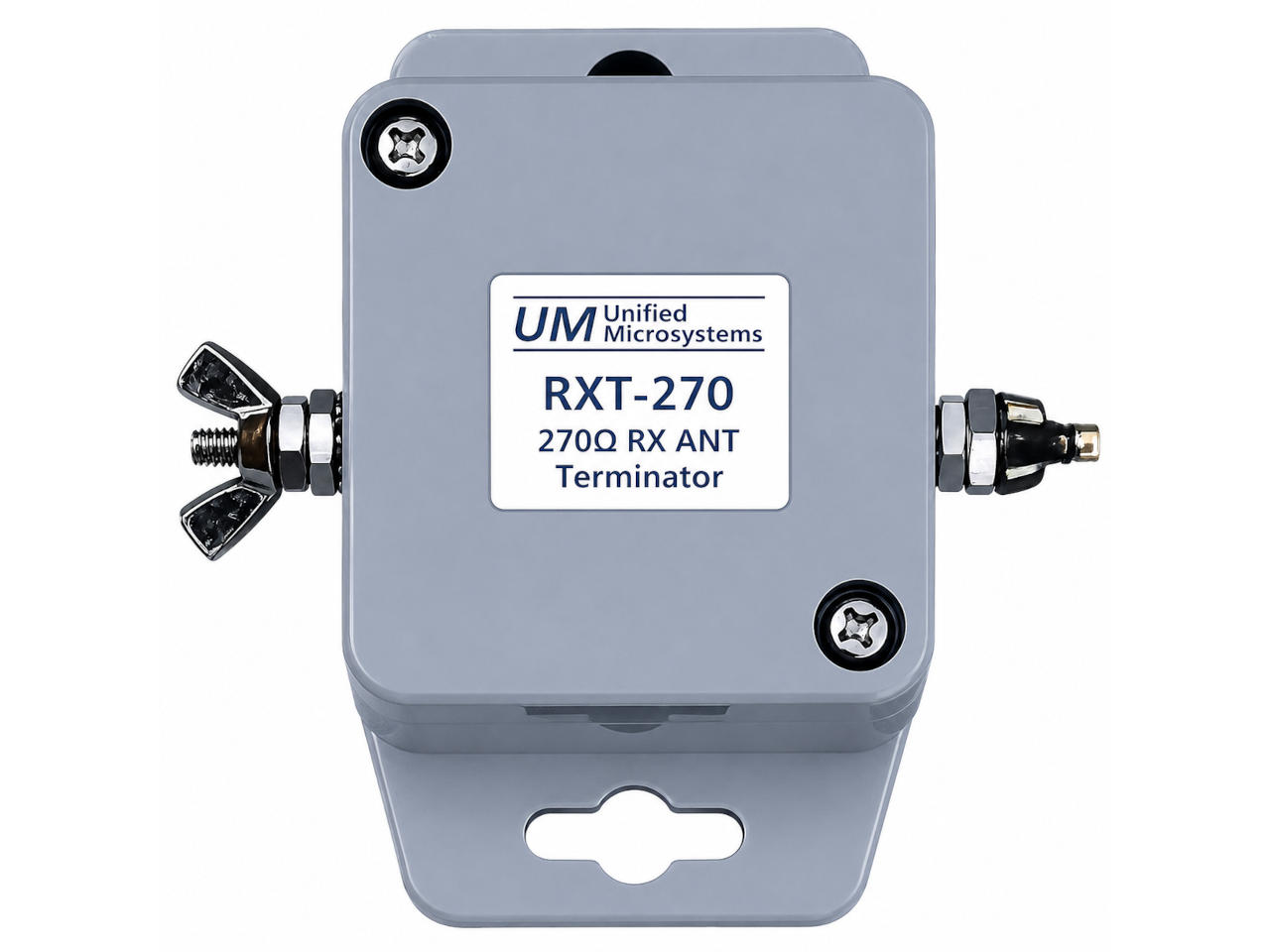

RXT Terminating Resistors
Low Band Receive Antennas need a Terminator, and the RXT-270 is designed for the most popular types.
This terminator is designed for long term reliability. It starts with 2 Watt, high surge current tolerant resistors with low inductance. A gas discharge tube provides additional electrical protection. It is also designed to handle the elements, starting with a NEMA rated case. The hardware is stainless steel. Finally, the internal electronics are conformally coated for additional protection.
RXT-270 Specifications
- Impedance (10%):
- RXT-270: 270 ohms
- Case Size:
- 3.2" X 2.0" X 1.4"
