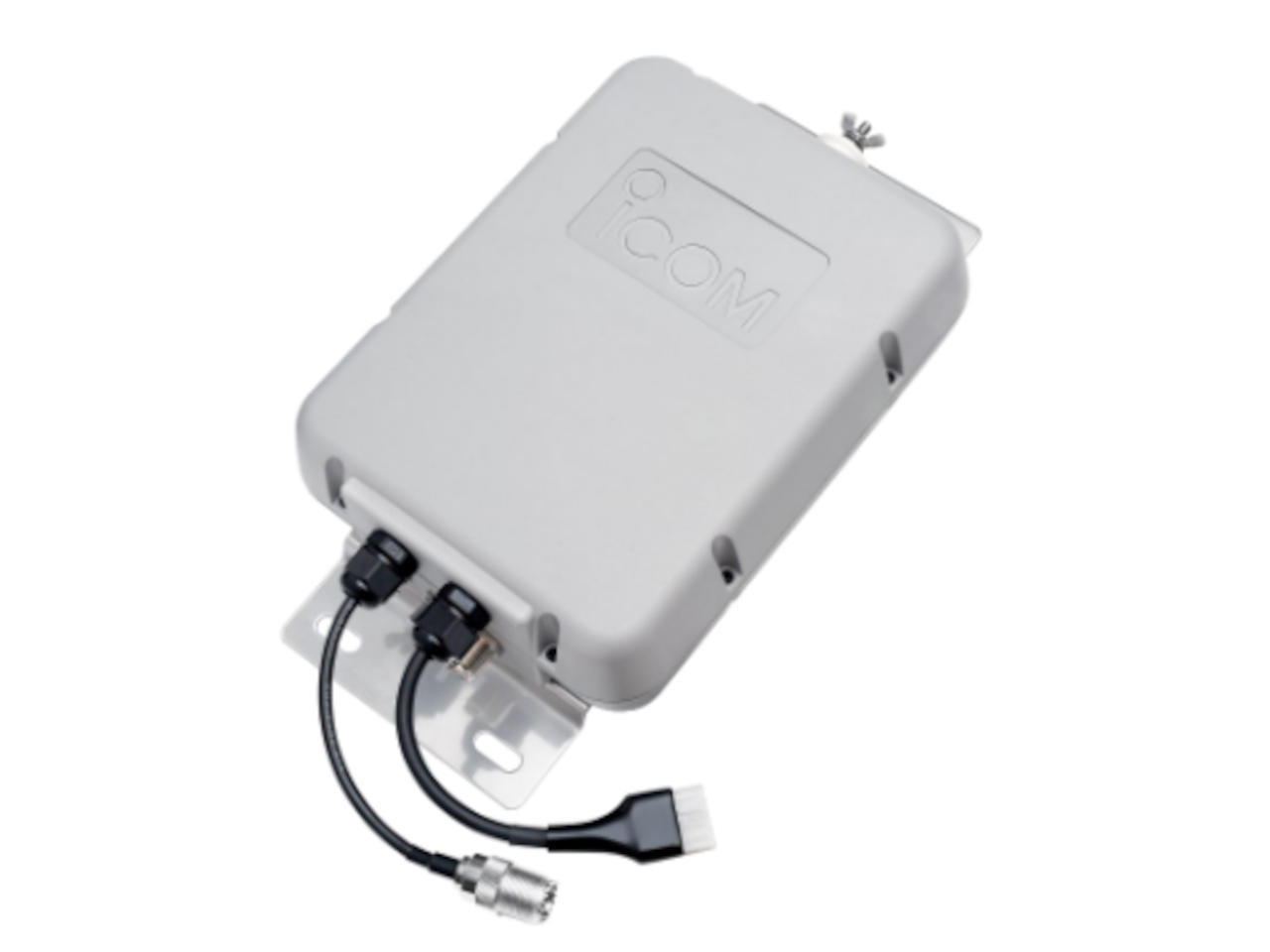

The Icom AH-6 is a lightweight, compact HF/50 MHz Automatic Antenna Tuner compatible with Long-Wire and 50-ohm Antennas, making it an ideal solution for portable and field operations.
Key Features:
- Seamlessly switch between long wire and 50-ohm antennas with a simple switch, no need for two separate tuners
- Wide frequency coverage: 1.8 MHz (160 m) to 50 MHz (6 m)
- High-speed automatic tuning in 2 to 3 seconds; 200-channel memory for near-instant re-tuning (about 1 second) at previously matched frequencies
- Compact and lightweight, same footprint as the AH-4, roughly 50% smaller/lighter than the AH-730
- Cables connect without opening the cover for quick, easy installation
- Minimized interference during tuning (RF output reduced to about 0.3 W via attenuator)
- IP54-rated rugged construction for safe outdoor installation
The AH-6 antenna tuner is compatible with IC-7760, IC-7610, IC-7300,
IC-7300MK2, IC-7100, and IC-718.
