ICOM IC-7100

Icom changed the way hams think about mobile HC communication in 1995 with the introduction of the IC-706. Since then, the Icom Mobile HF radios have been the Performance HF mobile radio of choice. At the 2012 Tokyo Hamfair, Icom once again changed mobile HF communications by introducing the IC-7100. The ease of operation with fingertip control utilizing the intuitive touch screen interface with the power of 32-bit IF DSP.

Touch Screen Interface

The angled radio control head features a large, multi-function, "touch screen"' dot-matrix LCD display that is positioned for easy view and operation. It also allows you to operate it while wearing gloves. The control head’s rear panel includes an internal speaker plus jacks for external speaker/headphones, CW key and microphone.

The innovative touch screen interface provides quick operation for setting and editing various functions and memories. Just tap the frequency, mode, filter, function etc, and quickly navigate through the changes you want. Additionally, the touch screen also allows you to input alphanumeric characters for call signs or memory channels.

D-STAR Ready

The IC-7100 provides D-STAR DV mode digital voice and low speed data communications. Add a third party GPS* and search the internal database based on your location. Additionally, the IC-7100 incorporates DR mode, which allows the user to control their D-STAR routing based on where they are talking "FROM" and where they want to talk "TO", including Reflector controls.
*External GPS receiver or manual data input required.

Digital Features Controlled by the IF DSP

A high-performance 32-bit floating point IF DSP delivers rich digital signal processing features, including digital IF filter, digital twin PBT, noise reduction, CW auto tune, etc. Those digital features work on all bands from HF to V/UHF bands.

Additional Features:

• Built-in SD card slot for voice storage and data cloning
• Built-in RTTY demodulator and decoder
• CW full break-in, CW receive reverse, CW auto tuning
• Band scope and SWR graphic display
• RF speech compressor controlled by the DSP
• Voice memory function
• Multi-function Meter
• 495 regular, 4 call, 6 scan edge and 900 DR mode repeater channels
• 4 channels TX voice memories
• ±0.5ppm frequency stability
• Auto reply function in D-STAR DV mode
• Digital callsign squelch and digital code squelch in D-STAR DV mode
• 12.5 kHz IF output for DRM (Digital Radio Mondiale) receive
• DSP controlled AGC function loop



General Frequency coverage (MHz)
  Receiver
  Transmit


0.030 - 199.999*

400.000 - 470.000*

1.800-1.999		3.500-3.999		5.255-5.405
7.000-7.300		10.100-10.150		14.000-14.350
18.068-18.168		21.000-21.450		24.890-24.990
28.000-29.700		50.000-54.000		144.000-148.000
430.000-450.000


*Some frequency bands are not guaranteed. Mode USB, LSB, CW, RTTY, AM, FM, WFM (Rx only) No. of memory channels 505 (495 regular, 6 scan edges and 4 call) ; 700 (D-STAR repeater channels Antenna connector

SO-239×2

(one each for HF/50 MHz and VHF/UHF bands, 50O)

Temperature Range

-10°C to +60°C;

+14°F to +140°F

Frequency stability Within ±0.5 ppm (+0°C to +50°C; +32°F to +122°F) Power supply requirement 13.8V DC ±15% Power consumption
(approx.)

Tx Max. Power    Rx Max. Audio/Standby

22.0 A 1.5 A/1.2 A

Dimensions (W×H×D)
(projections not included) RF Unit          167x58x255 mm
Controller      165x64x78.5 mm Weight (approx.) RF Unit          2.3kg
Controller      0.5kg

Transmitter
Output power (at 13.8V DC)	HF/50MHz 144MHz 430/440MHz SSB/CW/RTY/FM/DV 2-100 W 2-50 W 1-35 W AM 1-40W - -
Spurious emissions	Less than -50 dB (HF bands) Less than -63 dB (50 MHz) Less than -60 dB (144/430 MHz)
Carrier suppression	More than 50 dB
Unwanted sideband suppression	More than 50 dB

Receiver
Intermediate frequencies   SSB, CW, RTTY, AM, FM   WFM	124.487 MHz, 455 kHz, 36kHz 134.732 MHz, 10.70 MHz
Sensitivity (Pre-amp: ON)	0.5-1.8 MHz 1.8-29.9 MHz 50-54 MHz 144/430 MHz SSB/CW/RTTY — 0.16 µV 0.13 µV 0.11µV AM 13.0 µV 2.0 µV 1.0 µV 1.0 µV FM 0.5 µV (28-29.7) 0.5 µV (28-29.7) 0.25 µV 0.18 µV DV 1 µV(28-29.7) .63 µV .35 µV WFM – – 10.0 µV (76-108 MHz)
Selectivity   SSB (BW=2.4 kHz, sharp)     CW (BW=500 Hz, sharp)     RTTY (BW=350 Hz)     AM (BW=6 kHz)     FM (BW=15 kHz)     DV (12.5 kHz spacing)	(representative value) More than 2.4 kHz/–6 dB Less than 3.6kHz/–60 dB More than 500 Hz/–6 dB Less than 900 Hz/–60 dB More than 360 Hz/–6 dB Less than 650 Hz/–60 dB More than 6.0 kHz/–6 dB Less than 15 kHz/–60 dB More than 12 kHz/–6 dB Less than 20 kHz/–60 dB -50dB
Spurious and image rejection ratio	More than 70 dB (HF bands) More than 65 dB (other bands) (except 144 MHz IF point)
AF output power (at 13.8VDC)	More than 2.0 W at 10% distortion with an 8O load

All stated specifications are subject to change without notice or obligation.

READ ALL INSTRUCTIONS carefully and completely before using the transceiver.

Supplied Accessories

• Hand microphone, HM-198

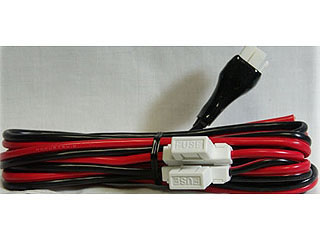

• DC power cable
• Spare fuses
• ACC cable (13-pin)
• Electronic keyer plug
• RTTY key plug
• Microphone hanger
