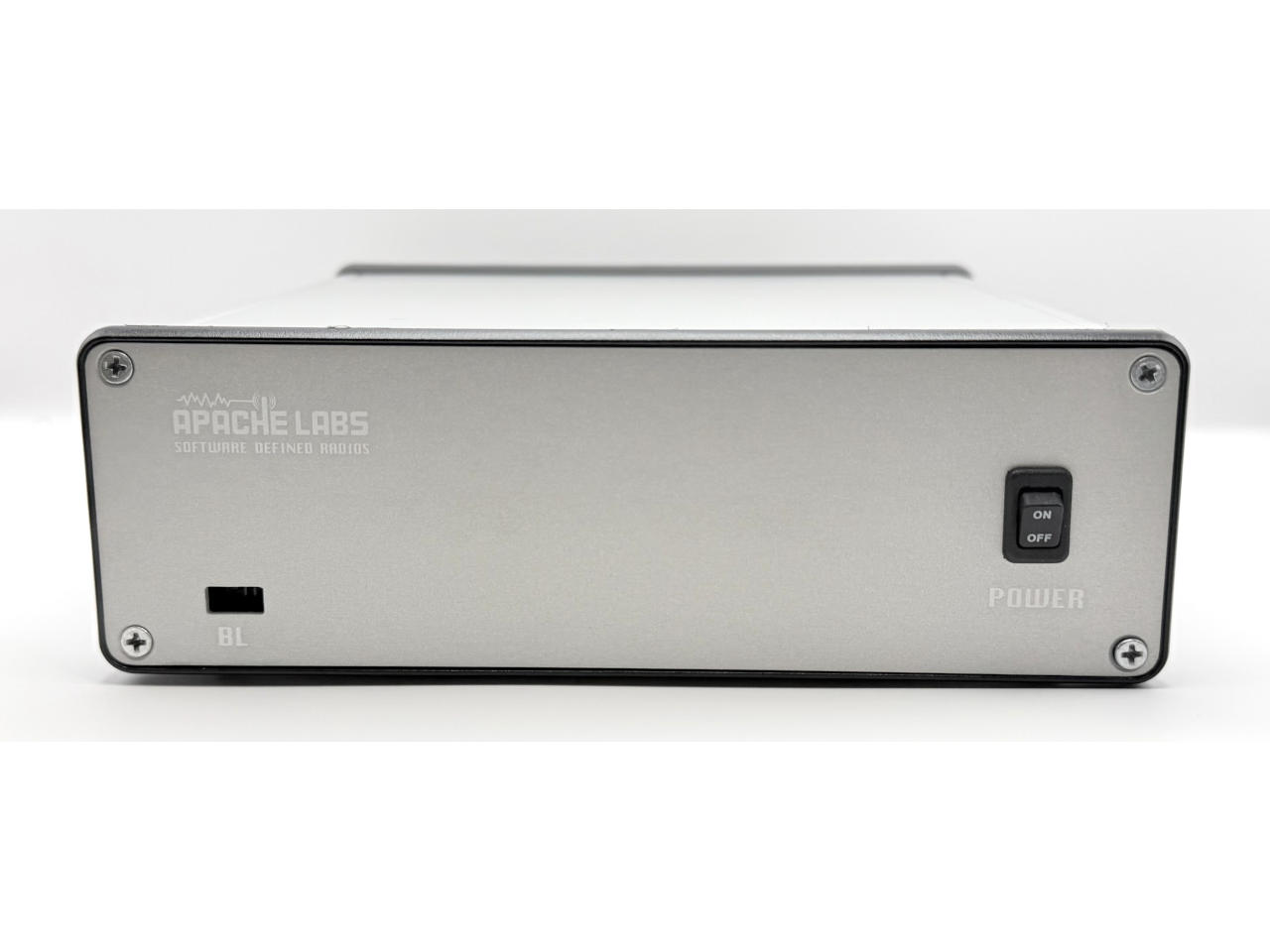

ANAN G2E-20
Ultra-High Dynamic Range. Compact SDR.
The ANAN G2E-20 delivers exceptional SDR performance in a compact 20W HF transceiver. Powered by open-source Core SDR and other OpenHPSDR software platforms, it combines ultra-high dynamic range, advanced DSP and modern remote operation in an affordable SDR platform.
Powered by Open-Source SDR
Industry-Leading Noise Reduction
Core SDR delivers industry-leading noise reduction algorithms including NR5, adaptive noise reduction, noise blanking and advanced filtering to help pull weak signals out of challenging noise environments.
2 Independent Receivers
When operated through suitable PC software, the G2E-20 supports 2 independent receivers, with up to 1.536 MHz of spectrum per receiver. Both receivers share the same antenna.
Remote Operation
Operate your G2E-20 remotely from virtually anywhere using Core SDR and compatible remote operating platforms.
Plug & Play Radio and Digital Operation
Connect the radio, launch Core SDR and start operating Voice, FT4/FT8, FreeDV. No complicated configuration or third-party SDR software required.
Automatic Software Updates
Core SDR keeps your radio current with the latest software, features, improvements and performance enhancements.
G2E-20 Specifications:
Receiver:
- Direct Sampling SDR architecture
- 16-bit ADC
- 9 kHz – 60 MHz receive coverage
- 2 independent receivers via PC software
- Up to 1.536 MHz spectrum per receiver
- 125 dB typical dynamic range
- 110 dB transmit and receiver image rejection
- Built-in bypassable broadcast-band rejection filter
- High-performance preamplifier
- Typical noise floor: -135 dBm / 500 Hz
- 1–31 dB software-selectable attenuation
Transmitter:
- 20W RF output, 160–10M
- 10–15W on 6M
- Full-duplex operation
- Split operation across 160M–6M
- -50 dBc typical two-tone IMD3 @ 10W PEP on 20M

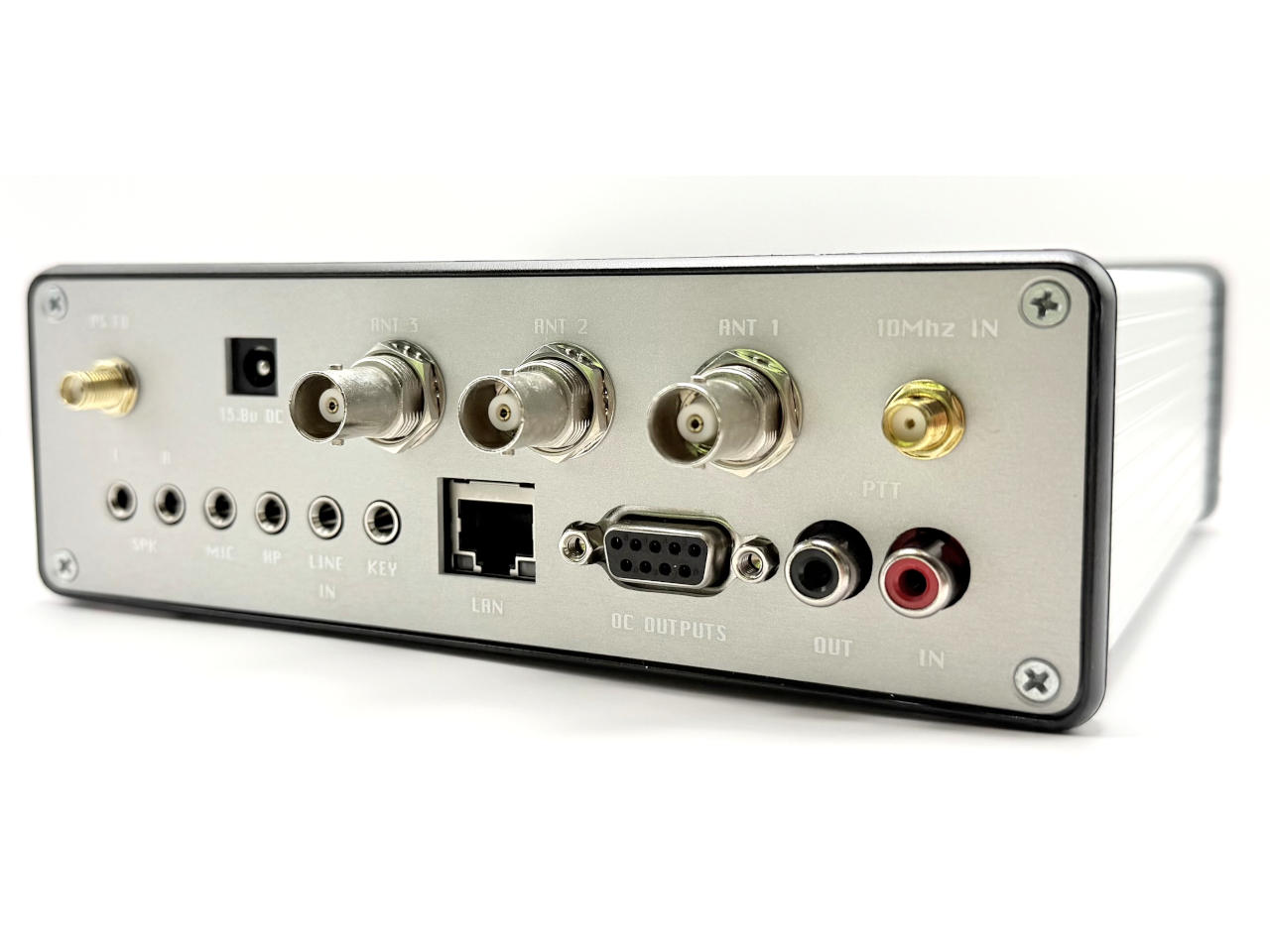

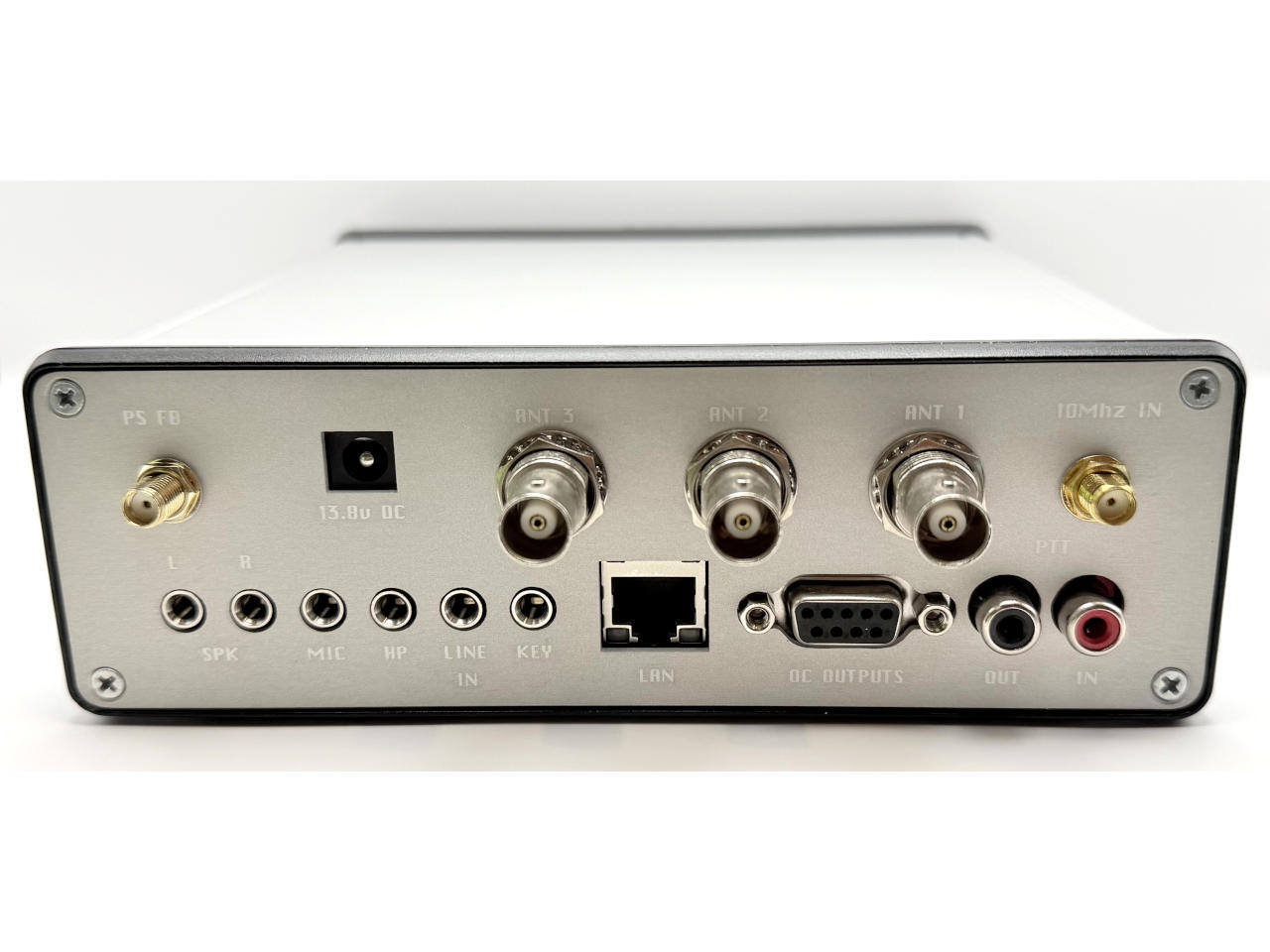

Connectivity:
- Gigabit Ethernet
- HPSDR Protocol 2
- Intel Cyclone 10 FPGA
- FPGA firmware updates over Ethernet
- Seven user-configurable open-collector outputs
- Dedicated PTT output for amplifier control
- Four user-configurable 12-bit analog inputs
- Three user-configurable digital inputs
- 13.8V DC operation
