The ANAN G2E delivers High-End SDR Performance in a Compact and Affordable 100W Transceiver. Powered by Open-Source Core SDR and the OpenHPSDR Ecosystem, it combines Exceptional Receiver Performance, Advanced DSP and a Powerful 100W Transmitter.
Powered by Open Source Core SDR
Core SDR provides a modern, continually evolving SDR experience designed to take Full Advantage of the G2E Architecture.
Industry-Leading Noise Reduction
Experience industry-leading noise reduction algorithms including NR5, adaptive noise reduction, noise blanking and advanced filtering to help recover weak signals in challenging noise environments.
4 Independent Receivers
When operated through suitable PC software, the G2E supports up to 4 independent receivers, with up to 192 kHz of spectrum per receiver. All receivers share the same antenna.
PureSignal Ready
The G2E includes a PureSignal feedback input for advanced adaptive predistortion and exceptionally clean transmission.
Remote Operation
Operate your G2E remotely from virtually anywhere using Core SDR and compatible remote operating platforms.
Plug & Play Radio and Digital Operation
Connect the radio, launch Core SDR and start operating Voice, FT4/FT8, FreeDV. No complicated configuration or third-party SDR software required.
Automatic Software Updates
Keep your radio up to date with the latest Core SDR features, improvements and performance enhancements.
G2E Specifications:
Receiver:
- Direct Sampling DDC / DUC architecture
- 16-bit ADC and DAC
- 9 kHz – 60 MHz receive coverage
- 4 independent receivers via PC software
- Up to 192 kHz spectrum per receiver
- 116 dB RMDR @ 2 kHz offset
- 125 dB typical dynamic range
- 110 dB transmit and receiver image rejection
- Built-in broadcast-band rejection filter
- High-performance preamplifier
- Typical noise floor: -135 dBm / 500 Hz
- 1–30 dB software-selectable attenuation
Transmitter:
- 100W RF output, 160–6M
- CW, SSB, NFM, AM and digital modes
- 1–30W AM
- Typically < -50 dBc IMD @ 100W PEP on 20M
- PureSignal feedback input
- Full-duplex operation
- Split operation

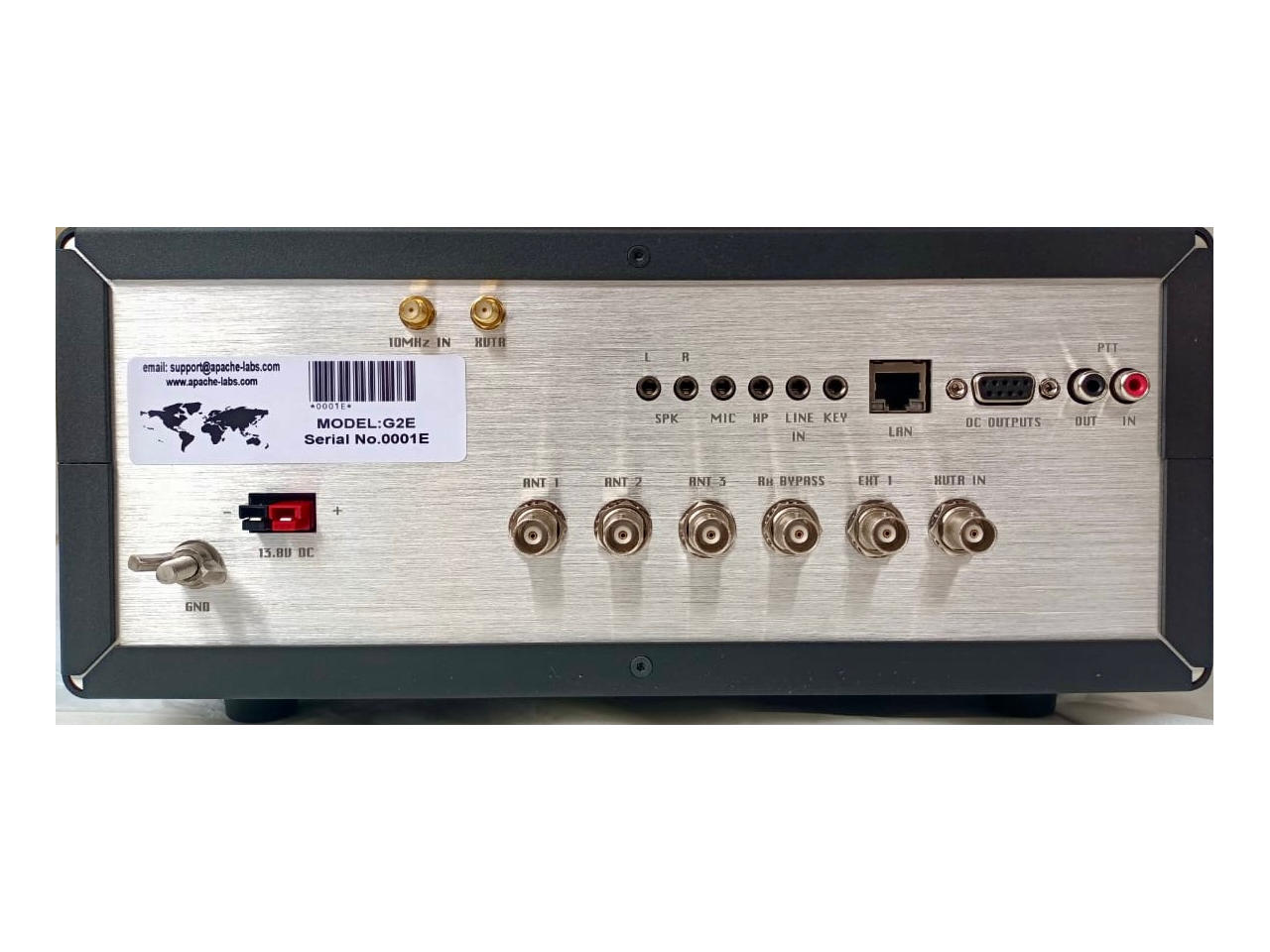

Connectivity:
- Gigabit Ethernet
- Intel Cyclone 10 LP FPGA
- FPGA firmware updates over Ethernet
- Seven user-configurable open-collector outputs
- 13.8V DC operation
