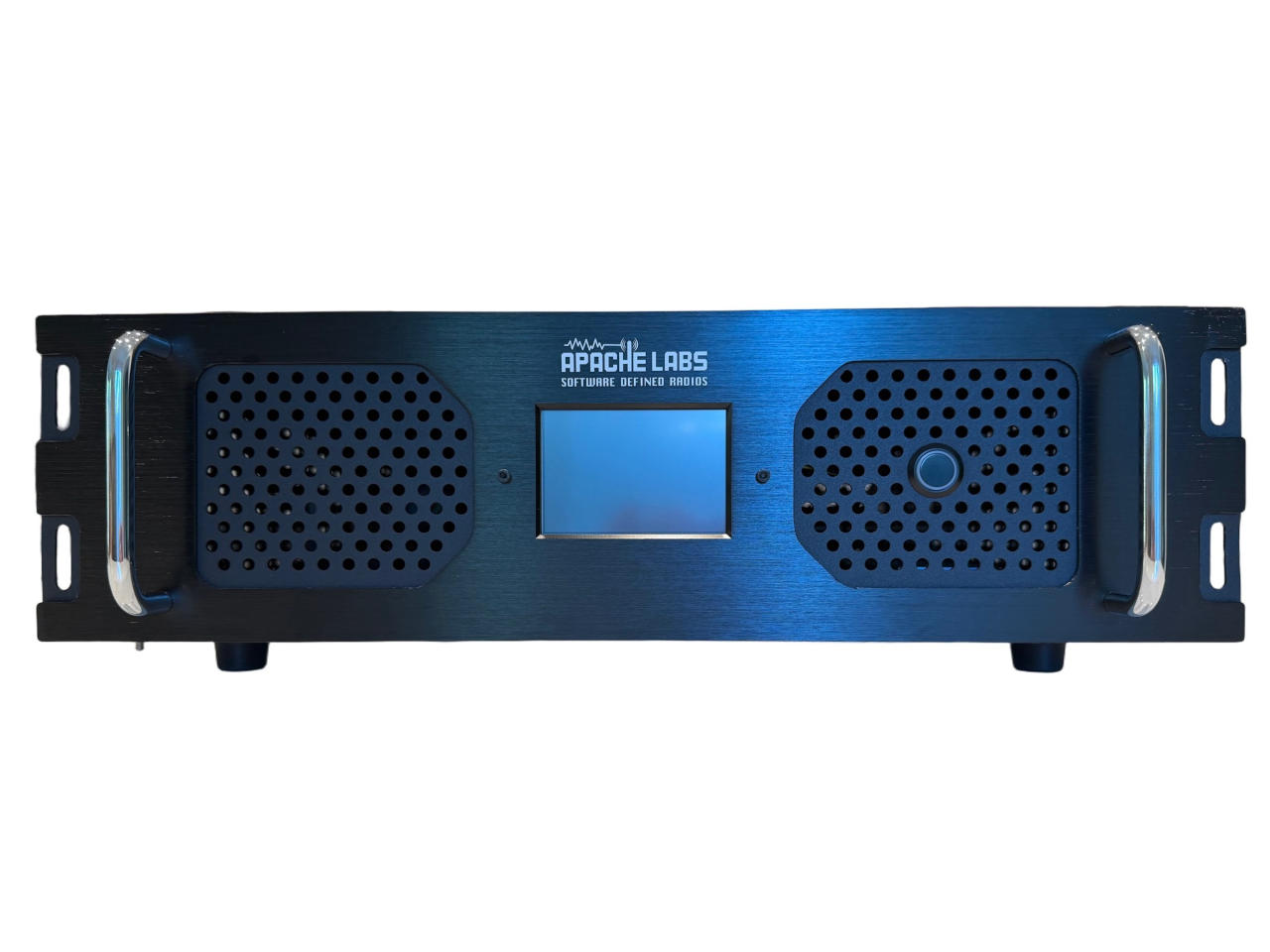

The ANAN G2-1K Combines the Exceptional RF Performance of the G2 Platform with an Integrated 1000W+ Linear Amplifier, creating a true One-Box High-Power SDR.
Powered by Open-Source Core SDR and the OpenHPSDR Ecosystem, the G2-1K delivers Advanced DSP, Exceptional Receiver Performance, Powerful Noise Reduction, Diversity Reception, PureSignal Predistortion and Comprehensive Remote Pperation.
One Box / 1000 Watts / No External Amplifier
The G2-1K Integrates the SDR Exciter and High-Power Amplifier into a Single Optimized System.
- No External Amplifier
- No RF Jumpers
- No ALC Cables
- No Amplifier Keying Cables
- Automatic Coordinated Band Switching
- Optimized Exciter-To-Amplifier Drive
- Integrated Protection and Monitoring
- Simplified Station Setup
The Radio Continuously Monitors SWR, Temperature, Voltage, Current, Reflected Power and Drive Conditions, Providing Coordinated Protection across the complete system.
Powered by Open Source Core SDR
Core SDR provides a Modern, Continually Evolving SDR Environment built on the OpenHPSDR Ecosystem.
Plug & Play Radio and Digital Operation
Connect the radio, launch Core SDR and start operating Voice, FT4/FT8, FreeDV. No complicated configuration or third-party SDR software required.
Industry-Leading Noise Reduction
Advanced algorithms including NR5, adaptive noise reduction, noise blanking and filtering help recover weak signals in difficult noise environments.
Up to 8 Independent Receivers
When operated through Core SDR on a PC or Mac, monitor multiple independent receivers with individual slices, panadapters and waterfalls.
Advanced Diversity Reception
Use synchronized receive channels and multiple antennas to combat fading, interference and local noise.
PureSignal Adaptive Predistortion
Advanced adaptive predistortion dramatically reduces transmitter distortion and intermodulation products for an exceptionally clean high-power signal.
Remote Operation
Operate your G2-1K remotely from virtually anywhere using Core SDR and compatible remote operating platforms.
Automatic Software Updates
Keep your radio current with the latest Core SDR features, improvements and performance enhancements.
G2-1K Specifications:
Receiver:
- Direct Down Conversion architecture
- Dual 16-bit phase-synchronous ADCs
- Independent filter banks for each ADC
- 9 kHz – 60 MHz coverage
- 116 dB RMDR @ 2 kHz
- -149 dBc/Hz phase noise @ 10 kHz
- 100 dB image rejection
- 1–30 dB step attenuator
- Hardware support for 7 independent receivers, assignable to either ADC
Transmitter:
- Direct Up Conversion architecture
- 16-bit DAC
- 1000W PEP SSB/CW
- 500W FM, RTTY & Digital
- 275W AM
- 400W 6M SSB/CW
- 200W 6M FM, RTTY & Digital
- -62 dB typical IMD3 @ 1000W PEP on 20M
- Harmonics typically better than -50 dBc on HF
- Harmonics typically better than -60 dBc on 6M
- Carrier and opposite-sideband suppression better than -80 dBc
- Transverter IF output: 0 to +15 dB
General:
- Direct Sampling DDC/DUC transceiver
- Microprocessor-controlled protection
- 1 Hz frequency resolution

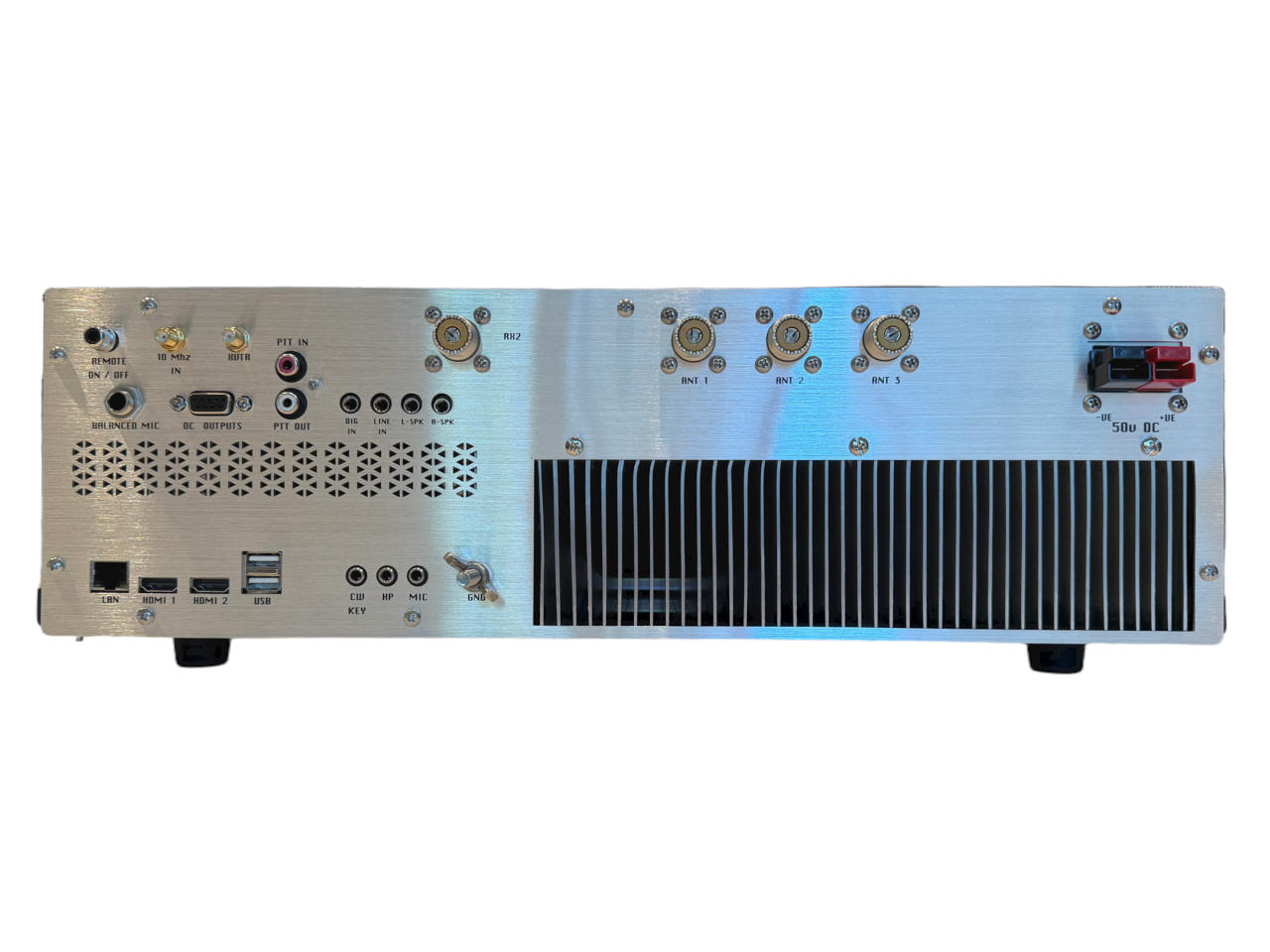

- Ethernet interface
- 10 MHz reference input
- Dual HDMI
- Dual USB
- RCA line/digital/PTT I/O
- Software-configurable outputs
- Headphone, speaker, microphone and CW connections
- 48–53.5V DC / 40A
- Approximately 15 kg
- 497 × 384 × 138 mm
The High-Power SDR — Reimagined
1000W+ of Integrated RF power. Exceptional SDR performance. Open-source software. Advanced DSP. PureSignal. Diversity. Remote Operation.
ANAN G2-1K — One Radio, One Amplifier, One Complete High-Power SDR Platform.
