ANAN G2 & G2 Ultra
The Next Generation of High-Performance SDR
The ANAN G2 and G2 Ultra combine exceptional RF performance with Core SDR. an Open-Source, Next-Generation SDR Platform Built on the OpenHPSDR Ecosystem.
Powered by Open Source SDR
Core SDR provides a Powerful, Continually Evolving Software Environment designed to Take Full Advantage of the G2's Advanced RF and FPGA Architecture.
Industry-Leading Noise Reduction
Experience Industry-Leading Noise Reduction Algorithms, including NR5, Adaptive Noise Reduction, Noise Blanking and Advanced Filtering that is Designed to Recover Weak Signals in Challenging Noise Environments.
8 Independent Receivers
When operated through Core SDR on a PC or Mac, the G2 provides up to 8 Independent Receivers Simultaneously, with Individual Slices, Panadapters and Waterfalls.
Advanced Diversity Reception
Use Synchronized Receive Channels and Multiple Antennas to Combat Fading, Interference and Local Noise for Improved Weak-Signal Reception.
PureSignal Adaptive Predistortion
Advanced Adaptive Predistortion Dramatically Reduces Transmitter Distortion and Intermodulation Products, delivering an Exceptionally Clean Transmitted Signal.
Remote Operation
Operate your G2 from Virtually Anywhere. Core SDR provides a Modern Remote Operating Environment for PC, Mac and Compatible Tablets.
Plug & Play Radio and Digital Operation
Connect the radio, launch Core SDR and start operating Voice, FT4/FT8, FreeDV. No complicated configuration or third-party SDR software required.
Automatic Software Updates
Core SDR keeps your radio up to date with the latest software, features, improvements and performance enhancements.
ANAN G2
100W HF & 6M Ultra High-Performance SDR:
- Direct Sampling DDC / DUC architecture
- 930 GMAC/s FPGA processing
- Integrated Quad-Core SoC
- Dual 16-bit phase-synchronous ADCs
- Up to 8 independent receivers via PC/Mac
- 9 kHz – 60 MHz coverage
- 116 dB RMDR @ 2 kHz offset
- -149 dBc/Hz phase noise @ 10 kHz
- 90 dB image rejection
- Diversity reception
- Industry-leading noise reduction
- NR5
- PureSignal adaptive predistortion
- Full-duplex operation
- Gigabit Ethernet
- 10 MHz reference input
- Core SDR & OpenHPSDR support

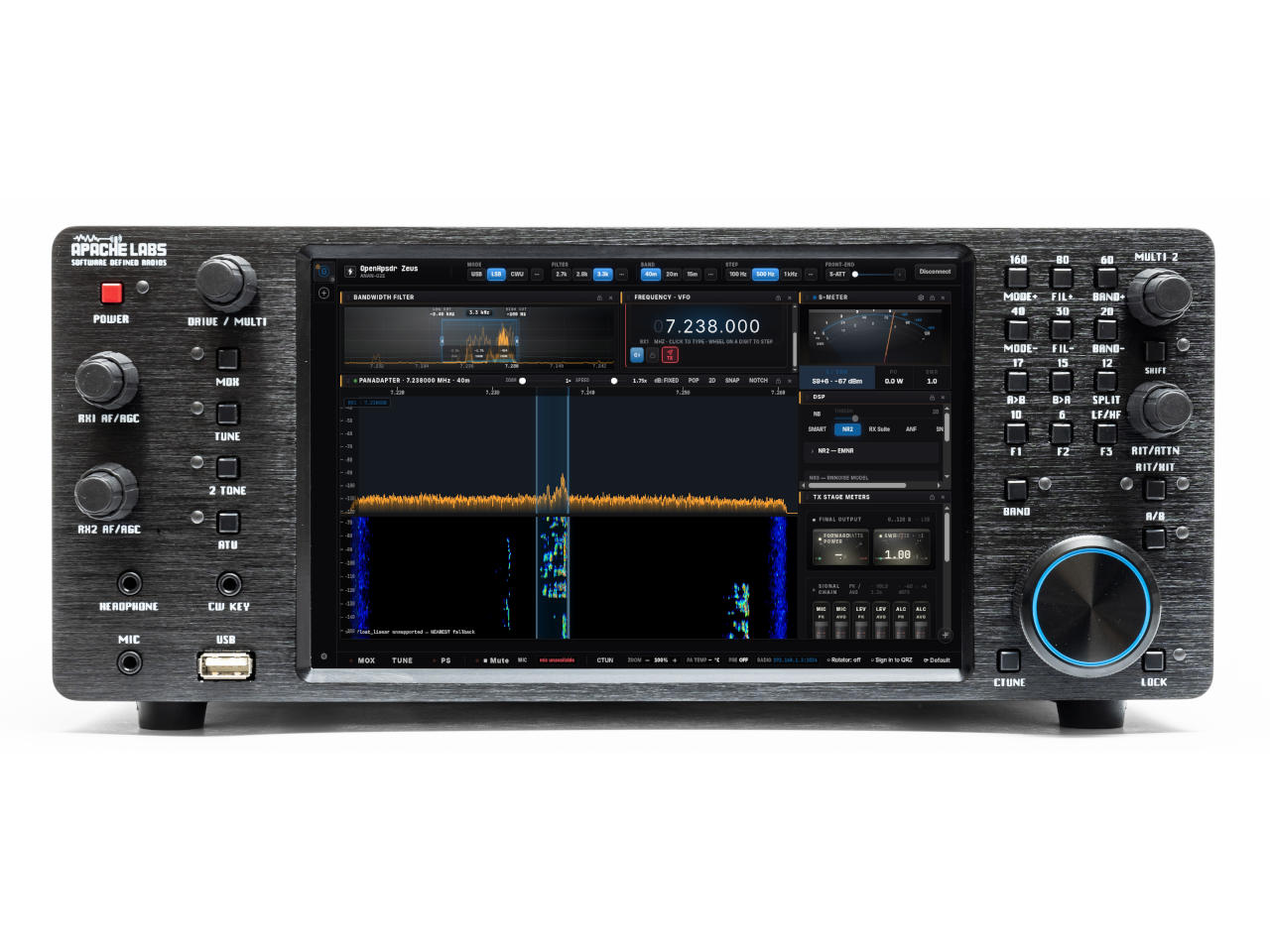

ANAN G2 Ultra
The Ultimate G2 Operating Experience
Everything in the G2, plus:
- 8-inch High-Resolution Display
- Dedicated Front-Panel Controls
- Multiple Control Knobs and Function Buttons
- LED Function Indicators
- CNC-machined aluminium front panel
- Integrated standalone operating experience
Transmitter
|
Specification
|
G2 / G2 Ultra
|
|
Architecture
|
Direct Up Conversion
|
|
DAC
|
16-bit
|
|
RF Output
|
100W PEP
|
|
AM Output
|
1–30W
|
|
IMD3
|
Typically -68 dB below PEP @ 100W on 20M
|
|
Harmonics
|
Typically > -43 dBc HF / > -60 dBc 6M
|
|
Carrier Suppression
|
> -80 dBc
|
|
Opposite Sideband Suppression
|
> -80 dBc
|
One Radio / Open Software / Limitless Possibilities
ANAN G2 — uncompromising SDR performance.
ANAN G2 Ultra — the same exceptional SDR platform with a premium integrated operating experience.
