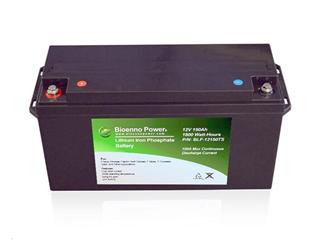

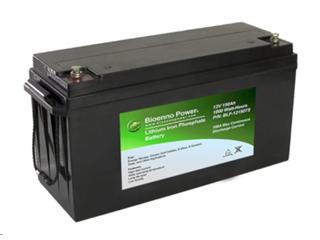

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-12150TS
is a 12V/150Ah battery based on state-of-the-art Lithium Iron Phosphate electrodes. Featuring a power density which can only be matched by the combined output of three 12V 100Ah capacity SLA batteries while weighing less than a single 12V 100Ah SLA, this is one of the most powerful and capable power units on the market. As with all Bioenno Power batteries, this unit includes as standard a fully integrated advanced single-board micro computer control system known as a PCM (protection circuit module). This allows the battery to give you 5-10+ years of maintenance free reliable performance at 2000+ charge cycles with the ability to discharge up to 90% of its rated capacity. Ideal for all applications ranging from powering motors to solar storage, this battery additionally boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! The unit has an available optional 120VAC/240 VAC AC-to-DC charger that provides 20A with Alligator Clips. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.
BLF-12150TS User Manual [PDF]
BLF-12150TS Battery Specifications
Form Factor: ABS Sealed
Charge/Discharge Connector: Screw Terminal
Maximum Continuous Discharge Current: 100A (Make sure your load consumes less than 100A)
Maximum Continuous Power: 1200 Watts (12V x 100A = 1200 Watts) (Make sure your load consumes less than 1200 Watts)
Dimensions: 19.5 in. x 6.75 in. x 9.5 in. (496 mm x 172 mm x 242 mm)
Weight: 44 lbs. (20 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry.

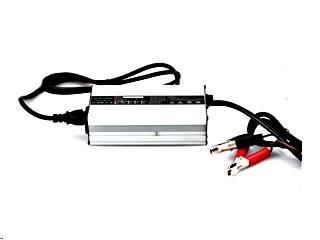

Available 120VAC/220 VAC Charger
