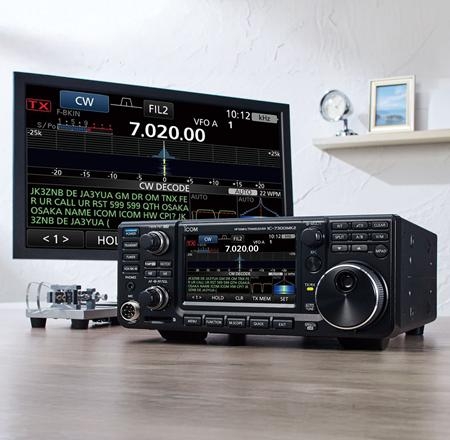

IC-7300MKII 100 Watt HF and 6 Meter Transceiver
The successor to the wildly successful and world-renowned IC-7300, the IC-7300MK2 builds on a legacy of excellence with enhanced performance and great new features, setting a new standard for HF operation.
Improved RMDR and Phase Noise Characteristics
The IC-7300MK2’s RMDR is improved to about 105 dB* typical (at 2 kHz separation) and transmit Phase Noise characteristics are improved by about 12 dB (at 1 kHz frequency separation) compared to the previous model. The superior Phase Noise characteristics reduce noise components in both receive and transmit signals.
Lower Heat Generation and Lower Power Consumption
Through component selection and DC power optimization, the IC-7300MK2 reduces heat generation and enables stable operation during extended operating periods, such as contest operation. Compared to the previous model, the IC-7300MK2 reduces power consumption from 0.9 A to 0.7 A (typical) during RX standby.

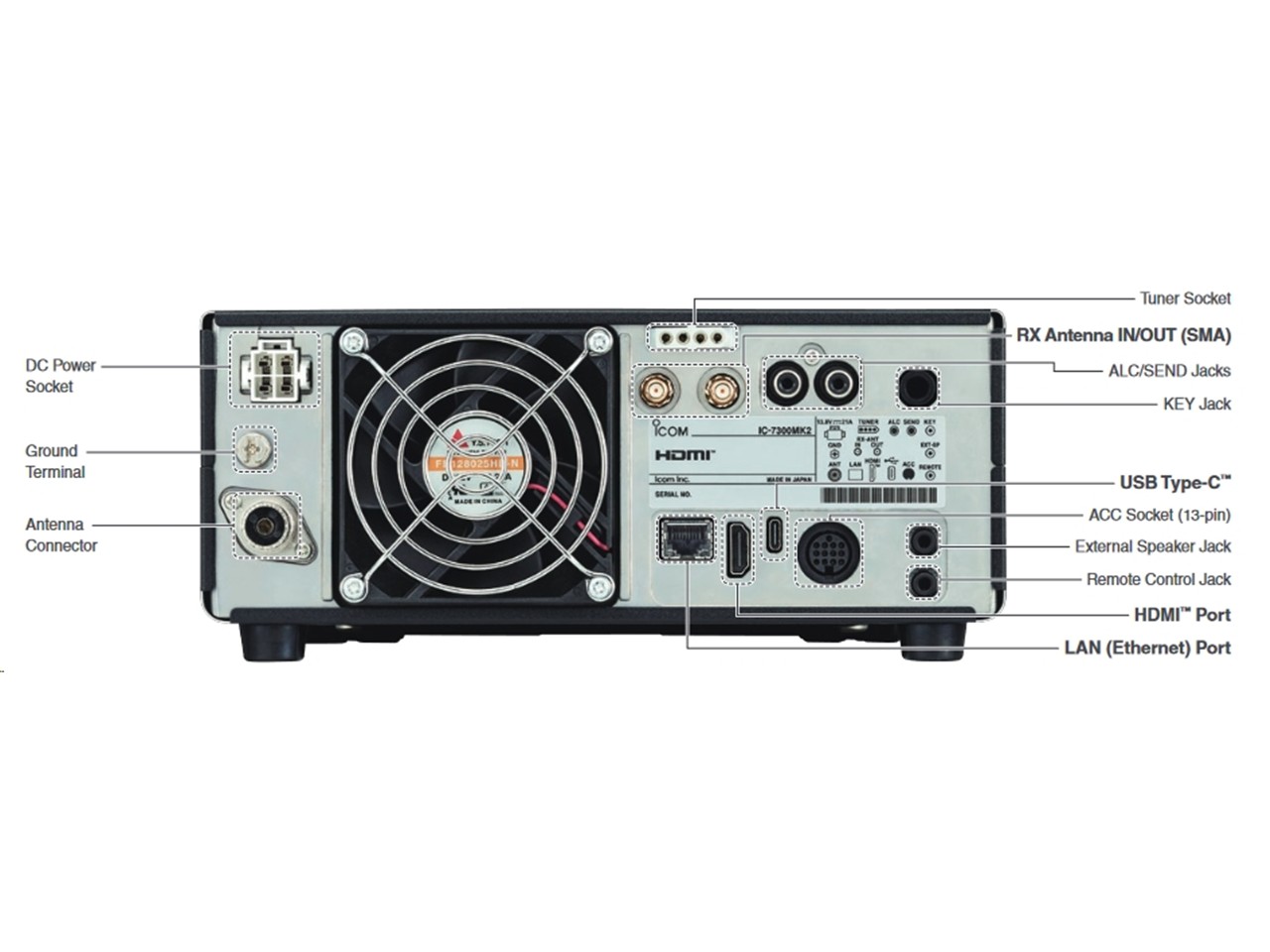

HDMI™ Port for an External Display
As a first for Icom HF/50 MHz radios, the IC-7300MK2 incorporates an HDMI™ port for external display connection. Operating information, such as frequency, scope, waterfall, and menus, can be shown on a large monitor, and audio can also be output through HDMI™ to the display’s speakers.
RX Antenna IN/OUT Connectors U
The RX Antenna IN/OUT connectors enable you to take advantage of antenna characteristics for optimized reception, such as avoiding interference and QRN. External bandpass filters and preamps can also be connected to these connectors.
Simplified RS-BA1 Remote Control
Whether from a remote location within your home QTH, or from a remote location somewhere around the world, the RS-BA1 (Version 2) software enables you to operate your IC-7300MK2. With the addition of an Ethernet connector, a base station computer is not required. You are able to remotely turn the radio ON or OFF through the Internet
Built-in CW Decoder
Another first for Icom’s HF/50 MHz radio, the IC-7300MK2 can decode Morse code signals without using a PC or other external equipment. The decode filter automatically follows the target signal, and keying speed is automatically adjusted.
USB Type-C™ with Dual COM + Audio
The IC-7300MK2 provides a USB Type-C™ port with dual virtual COM ports and audio In/Output. You can use two applications simultaneously, such as FT8, logging and contest software, with just one USB cable.
Other Features
• Supports newly allocated 5 MHz band (Europe Version)
• 70 MHz band is included in the Europe Version.
IC-7300MK2 Specifications
