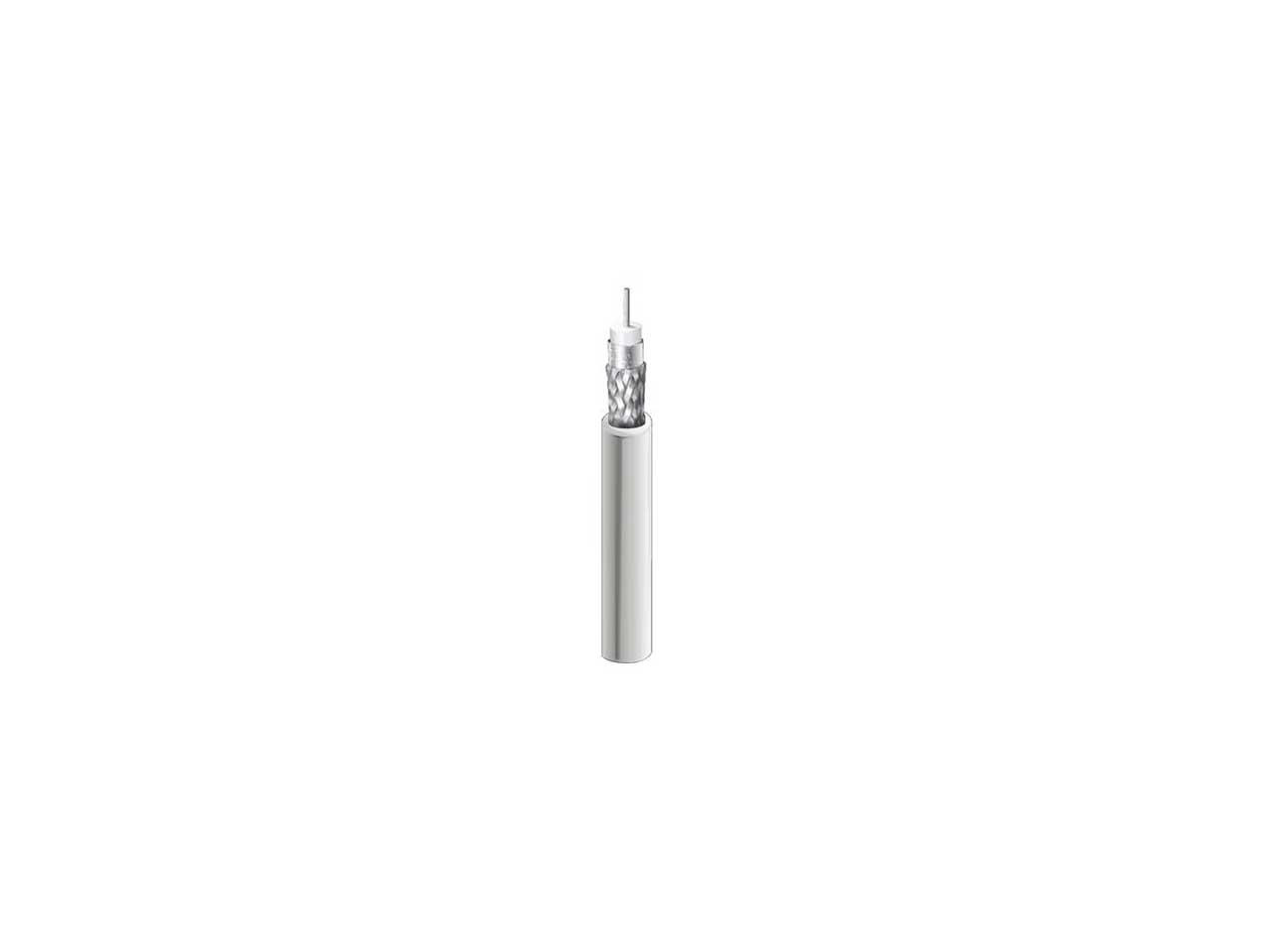

Belden 9100 is an Analog Video, Series 59, 20 AWG cable with solid .032" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond® II (100% coverage) plus an aluminum braid (40% coverage), and a CM PVC jacket.
Specifications: (White In Color)
- Conductor Count: 1
- Conductor Size: 20 AWG
- UL Temp Rating: 80°C
- Operating Temp Range: -40°C To +80°C
- Bulk Cable Weight: 21 lbs/1000ft
- Max Recommended Pulling Tension: 80 lbs
- Min Bend Radius/Minor Axis: 2.5 in
Standards:
- NEC/(UL) Specification: CATV, CM
- CEC/C(UL) Specification: CM
- CPR Euroclass: Eca
- PMSHA Specification: P-MSHA-SC-182/4
- Series Type: Series 59
